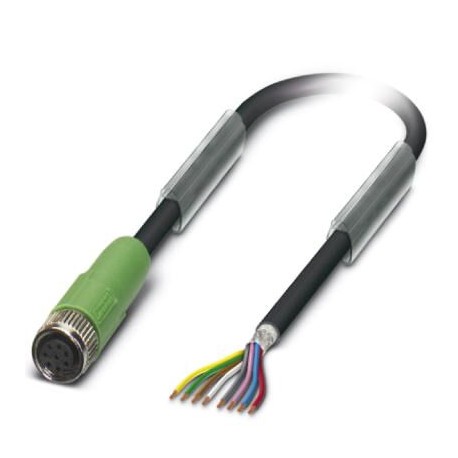

PHOENIX CONTACT SAC-8P-50,0-PUR/M 8FS SH SAC-8P-50,0-PUR/M 8FS SH 1422292 PHOENIX CONTACT Sensor/actuator cable SAC-8P-50,0-PUR/M 8FS SH 1422292 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-8P-50,0-PUR/M 8FS SH 1422292 PHOENIX CONTACT Sensor/actuator cable SAC-8P-50,0-PUR/M 8FS SH 1422292

SAC-8P-50,0-PUR/M 8FS SH

1422292

PHOENIX CONTACT

100 Pcs.

Sensor/actuator cable - SAC-8P-50,0-PUR/M 8FS SH - 1422292 Sensor/actuator cable, 8-pole, halogen-free PUR, greyish black RAL 7021, screened, free cable end, to straight female M8, coding: A, cable length: 50 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Sensor/actuator cable, 8-position, PUR halogen-free, black-gray RAL 7021, shielded, cable length: 50 m

Key Commercial Data

Orderkey1422292
Packing unit1
GTIN4055626297156
Custom tariff number85444290

Dimensions

Length of cable50 m

General

Rated current at 40°C1.5 A
Rated voltage30 V AC
30 V DC
Number of positions8
CodingA - standard
Standards/regulationsM8 connector IEC 61076-2-104
Status displayNo
Protective circuit/componentunwired
Degree of pollution3

Material

Flammability rating according to UL 94HB
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR

Standards and Regulations

Standard designationM8 connector
Standards/regulationsIEC 61076-2-104
Flammability rating according to UL 94HB

Cable

Cable typePUR halogen-free black
Cable abbreviationLi9YV1-C-V1-11Y
UL AWM style20549
Conductor cross section8x 0.14 mm² (Signal line)
AWG signal line26
Conductor structure signal line18x 0.10 mm
Core diameter including insulation1 mm ±0.02 mm (Signal line)
Thickness, insulation≥ 0.21 mm (Signal line)
≥ 0.38 mm (Outer cable sheath)
Wire colorswhite, brown, green, yellow, gray, pink, blue, red
Overall twist8 wires around filler to the core
Length of twist, overall twist58 mm
ShieldingTinned copper braided shield
Optical shield covering85 %
External sheath, colorblack-gray RAL 7021
External cable diameter D5.9 mm ±0.2 mm
Smallest bending radius, fixed installation29.5 mm
Smallest bending radius, movable installation59 mm
Number of bending cycles2000000
Bending radius59 mm
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Outer sheath, materialPUR
Material, fillerPE
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance1 GΩ*km (at 20 °C)
Conductor resistance139 Ω/km (at 20 °C)
Nominal voltage, cable≤ 300 V AC
Test voltage, cable≥ 3000 V AC (Spark test)
Test voltage Core/Shield≥ 2000 V AC (for 60 s)
Flame resistanceaccording to UL 758/1581 (horizontal)
in accordance with UL 758/1581 FT2
Halogen-freein accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Resistance to oilAccording to DIN EN 60811-2-1, 168 h at 100°C
Other resistancehydrolysis and microbe resistant
Resistant to salt water
Low adhesion
abrasion-resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications

eCl@ss

eCl@ss 5.127061801
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311

ETIM

ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855

UNSPSC

UNSPSC 13.231251501

ETIM for 1422292 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 8
Type of electrical connection, field-sided (EF005525) Other
Positioning cable feed, field-sided (EF005928) Other
Type of electrical connection, box-sided (EF005524) M8
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 50 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -25 °C
Rated current In (EF008250) 1.5 A
Rated voltage (EF000228) 30 V
Degree of protection (IP) (EF005474) IP65

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
