View larger
Images are for illustrative purposes only. Please refer to data sheet for details

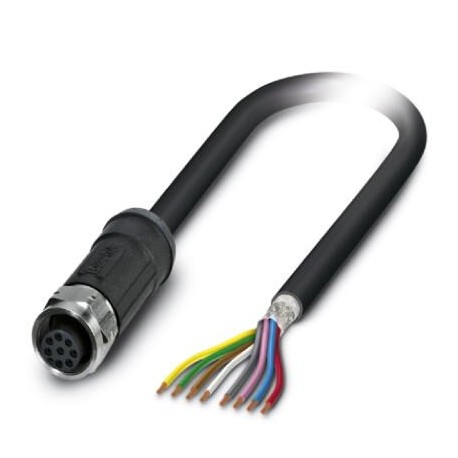

SAC-8P-25,0-28X/M12FS SH OD 1423030 PHOENIX CONTACT Sensor/actuator cable SAC-8P-25,0-28X/M12FS SH OD 1423030
SAC-8P-25,0-28X/M12FS SH OD
1423030
PHOENIX CONTACT
1 Pcs.
Sensor/actuator cable - SAC-8P-25,0-28X/M12FS SH OD - 1423030
Sensor/actuator cable, 8-pole, halogen-free PE-X/PE-X, black-grey RAL 7021, screened, free cable end, to straight female M12, coding: A, cable length: 25 m, for outdoor applications, with stainless steel knurling
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Sensor/actuator cable, 8-position, PE-X/PE-X halogen-free, black-gray RAL 7021, shielded, cable length: 25 m, for outdoor applications, with high-grade steel knurl
Key Commercial Data
| Orderkey | 1423030 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626323633 |
| Custom tariff number | 85444290 |
Dimensions
| Length of cable | 25 m |
|---|
General
| Rated current at 40°C | 2 A |
|---|---|
| Rated voltage | 30 V AC |
| 30 V DC | |
| Number of positions | 8 |
| Coding | A - standard |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Status display | No |
| Protective circuit/component | unwired |
| Degree of pollution | 3 |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | PP |
| Material of grip body | PP |
| Material, knurls | Stainless steel |
| Sealing material | FPM |
Standards and Regulations
| Standard designation | M12 connector |
|---|---|
| Standards/regulations | IEC 61076-2-101 |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 6.0 | 27279200 |
|---|---|
| eCl@ss 7.0 | 27279218 |
| eCl@ss 9.0 | 27060311 |
ETIM
| ETIM 5.0 | EC001855 |
|---|---|
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 8 |
| Type of electrical connection, field-sided (EF005525) | Other |
| Positioning cable feed, field-sided (EF005928) | Other |
| Type of electrical connection, box-sided (EF005524) | M12 |
| Type of plug-in contact, box-sided (EF008386) | Female (bus) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 25 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | CuSn |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -15 °C |
| Rated current In (EF008250) | 2 A |
| Rated voltage (EF000228) | 30 V |
| Degree of protection (IP) (EF005474) | IP65 |
