View larger
Images are for illustrative purposes only. Please refer to data sheet for details

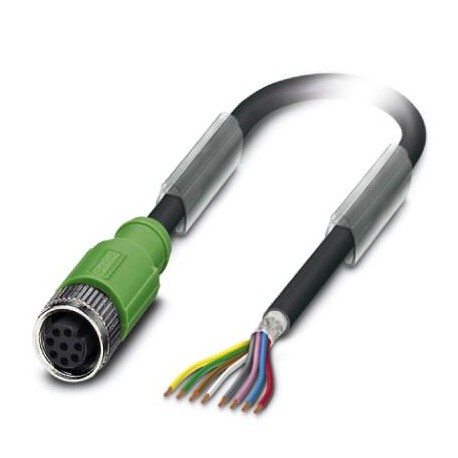

SAC-8P-0,9-PUR/M12FS SH 0,1 1426126 PHOENIX CONTACT Cable for sensors/actuators
SAC-8P-0,9-PUR/M12FS SH 0,1
1426126
PHOENIX CONTACT
100 Pcs.
Cable for sensors/actuators
Sensor/actuator cable, 8-pole, halogen-free PUR, greyish black RAL 7021, screened, free cable end, a straight female M12, coding: A, cable length: 0.9 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Cables for sensors/actuators, 8-pin, PUR, free of halogen, grey-black RAL 7021, shielded, cable length: 0.9 m
Trade data
| Order Code | One million four hundred twenty six thousand one hundred twenty six |
|---|---|
| Packaging unit | One |
| GTIN | Four trillion fifty five billion six hundred twenty six million four hundred forty six thousand four hundred seventy nine |
| Number of the customs tariff | Eighty five million four hundred forty four thousand two hundred ninety |
Ratings
| Cable length | 0.9 m |
|---|---|
| Lengths of the decladding of the end is not completed | 100 mm |
General
| Reference current at 40 ℃ | Two |
|---|---|
| Reference voltage | 30 V AC |
| 30 V DC | |
| Number of poles | Eight |
| Tamperproof | A - standard |
| Standards / Specifications | M12 connector IEC 61076-2-101 |
| Status display | Not |
| Circuit/component protection | disconnected |
| Overvoltage category | II |
| Pollution degree | Three |
Material
| Flammability class according to UL 94 | HB |
|---|---|
| Contact material | CuZn |
| Material of contact surface | Ni/Au |
| Material of door-contacts | TPU GF |
| Material of grip surface | TPU, flame-retardant, self-extinguishing |
| Material of the wheel | Zinc die-cast, nickel-plated |
| Seal material | NBR |
Standards and specifications
| Designation of the standard | M12 Connector |
|---|---|
| Standards/Requirements | IEC 61076-2-101 |
| Flammability class according to UL 94 | HB |
Cable
| Type of cable | PURE free halogen black |
|---|---|
| Cable Type (symbol) | PURE |
| Symbol cable | LiF9YC11Y |
| Style UL AWM | 20549 / 10493 (80 °C / 300 V) |
| Cross Section of the conductor | 8x 0.25 mm2 (signal Line) |
| AWG line signals | Twenty four |
| Structure of the driver signal line | 32x 0.10 mm |
| Diameter of wire with insulation | 1.17 mm ±0.02 mm |
| Thickness isolation | approximately 0.2 mm |
| Colours of the wires | brown, white, green, yellow, gray, pink, blue, red |
| Cabling total | 8 wires with 2 masses of padding in the direction of the soul |
| Shielding | Braid wire tinned copper |
| Optical coating shielding | 85 % |
| Outer sheath, colour | black-grey RAL 7021 |
| Thickness outer sheath | approx 0.5 mm |
| Outside diameter of the cable D | 5.9 mm ±0.2 mm |
| Minimum radius of curvature, fixed position | 5 x D |
| Minimum radius of curvature, position flexible | 10 x D |
| Number of bending cycles | Two million |
| Minimum radius of curvature, use of chain-cables | 10 x D |
| Race | 10 m |
| Movement speed | 3 m/s |
| Acceleration | 10 m/s2 |
| Weight of the cable | 53 kg/km |
| Outer sheath, material | PURE |
| Insulating material of the wire | PP |
| Conductive material | Cord Cu nu |
| Insulation resistance | ≥ 1 GΩ*km (at 20 °C) |
| Resistance of the conductor | ≤ 78 Ω/km (at 20 °C) |
| Nominal voltage cable | ≤ 300 V AC |
| Test voltage cable | ≥ 3000 V AC (spark Test) |
| Test voltage wire/shield | ≥ 2000 V AC (For 60 s) |
| Special properties | compatible chain-cables |
| Resistance to the spread of flames | accordance with UL FT-2 |
| according to UL 758/1581 (horizontal) | |
| according to UL 758/1581 FT2 | |
| according to DIN EN 60332-2-2 (20 s) | |
| Absence of halogen | according to DIN VDE 0472 part 815 |
| according to DIN EN 50267-2-1 | |
| Resistance special | resistant to hydrolysis and microbes |
| resistant to sea water | |
| Non-adhesive | |
| Non-adhesive | |
| relatively UV-resistant IN accordance with DIN en ISO 4892-2-A | |
| Ambient temperature (operation) | -40 °C ... 80 °C (cable, fixed installation) |
| -25 °C ... 80 °C (cable, installation flexible) |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Period of intended use (EFUP) : 50 years |
| The manufacturer's declaration in the tab "Downloads" contains detailed information on hazardous substances. |
Classifications
eCl@ss
| eCl@ss 6.0 | Twenty seven million two hundred seventy nine thousand two hundred |
|---|---|
| eCl@ss 7.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| eCl@ss 9.0 | Twenty seven million sixty thousand three hundred eleven |
ETIM
| ETIM 5.0 | EC001855 |
|---|---|
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 8 |
| Type of electrical connection, field-sided (EF005525) | Other |
| Positioning cable feed, field-sided (EF005928) | Other |
| Type of electrical connection, box-sided (EF005524) | M12 |
| Type of plug-in contact, box-sided (EF008386) | Female (bus) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 0.9 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | CuZn |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -25 °C |
| Rated current In (EF008250) | 2 A |
| Rated voltage (EF000228) | 30 V |
| Degree of protection (IP) (EF005474) | IP65 |
