SAC-6P-3,0-PVC/M12FRM PE SH

1414913

PHOENIX CONTACT

1 Pcs.

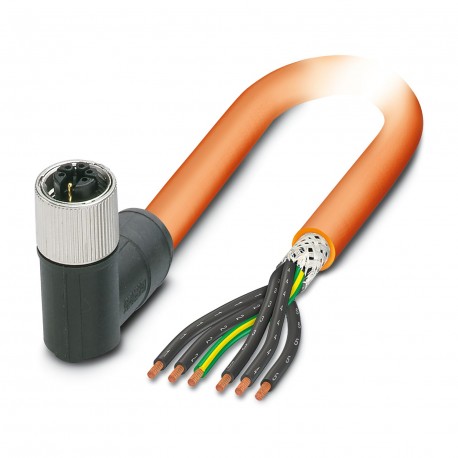

Power cable, 6-position, PVC, orange RAL 2003, shielded (Advanced Shielding Technology), Socket angled M12, M-coded, on free cable end, cable length: 3 m, For AC current up to 8 A/690 V Power cable, 6-pole, shielded (Advanced Shielding Technology), free cable end, to Elbowed Female M12, coding: M, cable length: 3 m, for AC current up to 8 A/690 V

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1414913
Packing unit1 pc
Catalog pagePage 299 (C-2-2019)
GTIN4055626036304
Weight per Piece (excluding packing)640.000 g
Custom tariff number85444290
Country of originPL (Poland)

Drawings

Diagram

Diagram
Current carrying capacity

Dimensional drawing

Dimensional drawing
M12 x 1 socket, angled

Circuit diagram

Circuit diagram
Contact assignment of the M12 socket

Schematic diagram

Schematic diagram
Pin assignment of M12 socket, 6-pos., M-coded, socket side view

Cable cross section

Cable cross section
PVC [PVC]

Back to top

Dimensions

Length of cable3 m
Back to top

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
Degree of protectionIP65
IP67
Back to top

General

Rated current at 40°C8 A
Rated voltage690 V AC
Number of positions6
Insulation resistance≥ 100 MΩ
CodingM - Power
Standards/regulationsM12 connector IEC 61076-2-111
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryIII
Degree of pollution3
Torque0.4 Nm (M12 connector)
Back to top

Material

Flammability rating according to UL 94V0
Contact materialCuZn
Contact surface materialNi/Au
Contact carrier materialPA
Material of grip bodyPP
Material, knurlsZinc die-cast, nickel-plated
Back to top

Standards and Regulations

Standards/specificationsM12 connector IEC 61076-2-111
Flammability rating according to UL 94V0
Back to top

Cable

Cable typePVC
Cable type (abbreviation)PVC
UL AWM style2570 / 10914 (80°C/1000 V)
Conductor cross section6x 1.5 mm²
AWG power supply16
Conductor structure, voltage supply78x 0.15 mm
Core diameter including insulation2.4 mm ±0.05 mm
Thickness, insulation≥ 0.36 mm
Wire colorsblack 1, black 2, black 3, black 4, black 5, green/yellow
External sheath, colororange RAL 2003
Outer sheath thicknessapprox. 0.76 mm
External cable diameter D10.4 mm ±0.25 mm
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Number of bending cycles1000000
Minimum bending radius, drag chain applications10 x D
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Cable weight192 kg/km
Outer sheath, materialPVC
Material conductor insulationPVC
Conductor materialBare Cu litz wires
Insulation resistance≥ 100 MΩ*km (at 20 °C)
Conductor resistance≤ 15 Ω/m (at 20 °C)
Nominal voltage, cable≤ 1000 V AC
Test voltage, cable≥ 10000 V AC (Spark test)
Flame resistanceAccording to UL 758/1581 (Cable Flame)
according to UL 758/1581 FT1
According to DIN EN 60332-1-2
Resistance to oilAccording to DIN EN 60811-404, 168 h at 60 °C
Ambient temperature (operation)-20 °C ... 80 °C (cable, flexible installation)
Back to top

Environmental Product Compliance

REACh SVHCLead 7439-92-1
Back to top

Classifications

eCl@ss

eCl@ss 5.127061801
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311
Back to top

ETIM

ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855
Back to top

ETIM for 1414913 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 6
Type of electrical connection, field-sided (EF005525) Other
Positioning cable feed, field-sided (EF005928) Other
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Angled
Cable length (EF000536) 3 m
Material of cable sheath (EF004136) Polyvinyl chloride (PVC)
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -20 °C
Rated voltage (EF000228) 690 V
Degree of protection (IP) (EF005474) IP65

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
