View larger
Images are for illustrative purposes only. Please refer to data sheet for details

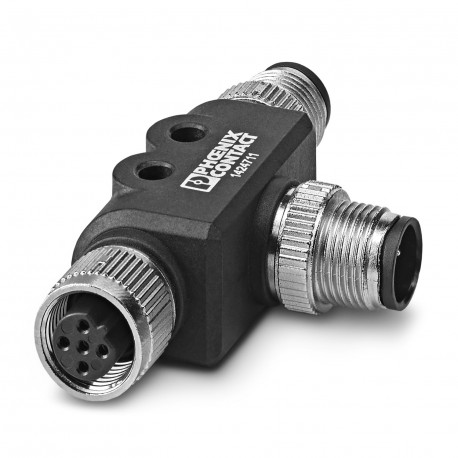

SAC-5PT-FB/2XMB PBDP SH 1424711 PHOENIX CONTACT T distributor
SAC-5PT-FB/2XMB PBDP SH
1424711
PHOENIX CONTACT
1 Pcs.
T distributor
T Distributor, PROFIBUS DP (12 MBit/s), 5-pole, shielded, Straight female M12, coding: B, A Straight connector M12, coding: B and Straight connector M12, coding: B
Automation > Sensor actuator adapter
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1424711 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 436 (C-2-2017) |
| GTIN | 4055626376745 |
| Weight per Piece (excluding packing) | 22.220 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 85 °C (Plug / socket) |
|---|---|
| Degree of protection | IP65 |
General
| Rated current at 40°C | 1 A (Contact 2 and 4) |
|---|---|
| 4 A (Contact 1 and 3) | |
| Rated voltage | 60 V DC |
| 48 V AC | |
| Number of positions | 5 |
| Color handle area | black |
| Coding | B-coded |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Signal type/category | PROFIBUS DP, 12 Mbps |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 0.4 Nm (M12 connector) |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuZn (pin) / CuSn (socket) |
| Contact surface material | Ni/Au |
| Contact carrier material | PBT |
| Material of grip body | PBT |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR |
Standards and Regulations
| Standard designation | M12 connector |
|---|---|
| Standards/regulations | IEC 61076-2-101 |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | T-adapter |
| Screened (EF000881) | Yes |
| Housing material (EF001596) | Other |
| Ambient temperature (EF002386) | 85 °C |
| Operating temperature (EF002393) | -25 °C |
| Degree of protection (IP), mounted (EF007466) | IP65 |
| Material thread ring (EF012304) | Other |
| Rated voltage (EF000228) | 48 V |
| Rated current In (EF008250) | 1 A |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Pollution degree (EF006786) | 1 |
| Material of contact surface (EF004020) | Nickel/gold |
