View larger
Images are for illustrative purposes only. Please refer to data sheet for details

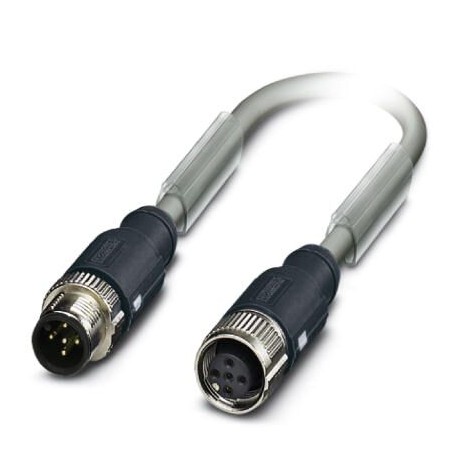

SAC-5P-MS/ 6,0-923/FS CAN SCO 1425789 PHOENIX CONTACT Cable, system bus, CANopen®, DeviceNet™, 5-pole, PUR h..
SAC-5P-MS/ 6,0-923/FS CAN SCO
1425789
PHOENIX CONTACT
50 Pcs.
Cable, system bus, CANopen®, DeviceNet™, 5-pole, PUR halogen-free, gray RAL 7001, shielded, Plug straight M12 SPEEDCON, coded, to the connection socket straight M12 SPEEDCON, coded, cable length: 6 m, plug-in Connector without shield
Bus system cable, CANopen®, DeviceNet™, 5-pole halogen-free, shielded, M12 straight connector, coding: A SPEEDCON, a Straight female M12, coding: A SPEEDCON, cable length: 6 m, Unshielded plug-in connector
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Cable, system Bus, CANopen®, DeviceNet™, 5-pin, PUR halogen free, gray-beige RAL 7001, shielded, Plug straight M12 SPEEDCON, coding for the Socket straight M12 SPEEDCON, coding, length of cable: 6 m Connector cable
Business
| The code of the application | One million four hundred twenty five thousand seven hundred eighty nine |
|---|---|
| The amount of the package (C#) | 1 Unit |
| The minimum quantity of the order | 50 Pcs |
| Note | The production is linked to the application (no removal) |
| GTIN | Four trillion fifty five billion six hundred twenty six million four hundred twenty six thousand six hundred twenty four |
| Weight per piece (excluding packing) | 386,000 GRM |
| The number of corporate and commercial | Eighty five million four hundred forty four thousand two hundred ninety |
| The country-of-origin | PL (Poland). |
Ratings
eCl@ss
| eCl@ss 6.0 | Twenty seven million two hundred seventy nine thousand two hundred |
|---|---|
| eCl@ss 7.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| the eCl@ss 9.0 | Twenty seven million sixty thousand three hundred eleven |
ETIM
| ETIM 6.0 | EC001855 |
|---|---|
| ETIM 7.0 | EC001855 |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 5 |
| Type of electrical connection, field-sided (EF005525) | M12 |
| Type of plug-in contact, field sided (EF006269) | Female (bus) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | M12 |
| Type of plug-in contact, box-sided (EF008386) | Male (plug) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 6 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | Other |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -20 °C |
| Rated current In (EF008250) | 4 A |
| Rated voltage (EF000228) | 48 V |
| Degree of protection (IP) (EF005474) | IP65 |
