View larger
Images are for illustrative purposes only. Please refer to data sheet for details

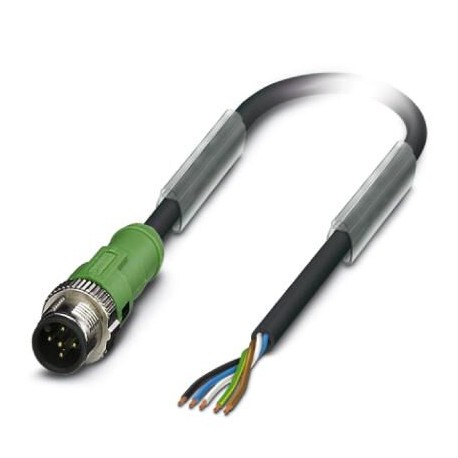

SAC-5P-MS/ 2,7-115 BK SCO 1445761 PHOENIX CONTACT Cable for sensors/actuators, 5-pole, PUR, black-gray RAL 7..
SAC-5P-MS/ 2,7-115 BK SCO
1445761
PHOENIX CONTACT
50 Pcs.
Cable for sensors/actuators, 5-pole, PUR, black-gray RAL 7021, Plug straight M12 SPEEDCON, coded, to the end of free cable, cable length: 2.7 m
Sensor/actuator cable, 5-pole, halogen-free PUR, greyish black RAL 7021, M12 SPEEDCON straight male connector, coding: A, to free cable end, cable length: 2.7 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Cable, sensor/actuator, 5-pin, PUR halogen free, black-gray RAL 7021, Plug straight M12 SPEEDCON, coding, to the free end of the conductor-length of cable: 2.7 m
Business
| The code of the application | One million four hundred forty five thousand seven hundred sixty one |
|---|---|
| The amount of the package (C#) | 1 Unit |
| The minimum quantity of the order | 50 Pcs |
| Note | The production is linked to the application (no removal) |
| GTIN | Four trillion forty six billion three hundred fifty six million six hundred six thousand six hundred twenty two |
| Weight per piece (excluding packing) | 103,300 GRM |
| The number of corporate and commercial | Eighty five million four hundred forty four thousand two hundred ninety |
| The country-of-origin | PL (Poland). |
Measures
| The length of the cable | 2.7 m |
|---|---|
| The length of the insulation from the free end | 50 mm |
Environmental conditions
| The degree of protection | IP65 |
|---|---|
| IP67 | |
| IP68 |
The general
| Rated current at 40 °C | Four |
|---|---|
| Rated voltage | 48 V AC |
| 60 V DC | |
| The number of poles in the | Five |
| The resistance of the insulation | ≥ 10 MΩ |
| Coding | The standard |
| An indication of the state of | Don't |
| Over voltage category | II |
| The degree of impurity, | Three |
The Material
| Class of flammability according to UL 94 | Hemoglobin (HB) |
|---|---|
| The Material of the contact | CuSn |
| Material on the surface of the contact | Ni/Au |
| The Material supporting the contact | TPU GF |
| The Material of the body of the cable | TPU, hardly inflammable, self-extinguishing |
| The Material of the anti - | Zinc die casting is under pressure, nickel-plated |
The rules and the provisions of
| Class of flammability according to UL 94 | Hemoglobin (HB) |
|---|
The line
| The type of cable | PURE black 5-conductor gray |
|---|---|
| Cable type (code) | One hundred fifteen |
| The code for the cable | Li9Y11Y-HF |
| The style of the UL AWM | 20549 / 10493 (80 °C / 300 V) |
| The value of the driver | 5x 0.34 mm2 |
| The line of the signal WIRE | Twenty two |
| The mounting of the conductive signal line on the | 42x 0.10 mm |
| The diameter of the conductor, including the insulation | In (1.27 mm ±0.02 mm |
| The density of the wall insulation | ≥ 0.21 mm |
| The color of the driver | brown, black, blue, brown, black, grey |
| Stranded in total | 5 conductors twisted together along |
| Outer shell, color | the black-gray RAL 7021 |
| The thickness of the wall of outer Jacket | ca. 0.7 mm |
| The outer diameter of the cable D | 5 mm (±0.15 mm) |
| Minimum bend radius of, the position of the fixed | 5 x D |
| Minimum bend radius of, the position of the flexible | 10 x D |
| Number of cycles of the bending | Four million |
| The radius of the bending | 50 mm |
| The course of the shift | A 10-m |
| The speed of the scroll | 3 m/sec. |
| The acceleration | 10 m/s2) |
| The weight of the cable | 35 kg/km |
| An external covering material, | PURE |
| The Material of the filler | PP |
| An insulating Material of the conductor | PP |
| The Material of the conductor | Copper cable |
| The resistance of the conductor | But the 58 Ω/km) |
| The nominal voltage of the line | ≤ 300 V |
| The voltage of the test of the | ≥ 3000 V |
| Special features | himself to the door-handles |
| silicon-free | |
| Free of substances which interfere with wetting of paint | |
| flexible | |
| The Anti-flammability | as per UL-Style 20549 |
| UL 758/1581 FT2 | |
| The absence of a halogen-free | acc. to DIN VDE 0472 part 815 |
| Oil-resistant | in accordance with DIN EN 60811-2-1 |
| The other resistors | with good UV resistance in accordance with DIN EN ISO 4892-2-A |
| resistant to hydrolysis and microbes. | |
| resistant to sea water | |
| with a low-tack | |
| resistant to wear and tear | |
| Ambient temperature (operation) | Operating temperature: -40 °C ... 80 °C (Cable, available to set) |
| -25 °C ... 80 °C (Cable, available to a mobile) |
Environmental And Product Compliance
| As China RoHS | The period for the for their intended uses: unlimited, = EFUP and |
|---|---|
| No hazardous substances above the limit values for the |
Ratings
eCl@ss
| the eCl@ss 4.0 | Twenty seven million sixty thousand three hundred six |
|---|---|
| the eCl@ss 4.1 | Twenty seven million sixty thousand three hundred six |
| the eCl@ss 5.0 | Twenty seven million sixty one thousand eight hundred one |
| eCl@ss 5.1 | Twenty seven million sixty one thousand eight hundred |
| eCl@ss 6.0 | Twenty seven million two hundred seventy nine thousand two hundred |
| eCl@ss 7.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| eCl@ss 8.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| the eCl@ss 9.0 | Twenty seven million sixty thousand three hundred eleven |
ETIM
| ETIM 3.0 | EC001855 |
|---|---|
| ETIM 4.0 | EC001855 |
| ETIM 5.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
UNSPSC
| UNSPSC 6.01 | Thirty one million two hundred fifty one thousand five hundred one |
|---|---|
| UNSPSC 7.0901 | Thirty one million two hundred fifty one thousand five hundred one |
| UNSPSC 11 | Thirty one million two hundred fifty one thousand five hundred one |
| UNSPSC 12.01 | Thirty one million two hundred fifty one thousand five hundred one |
| UNSPSC 13.2 | Thirty one million two hundred fifty one thousand five hundred one |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 5 |
| Type of electrical connection, field-sided (EF005525) | M12 |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | Other |
| Positioning cable feed, box-sided (EF005927) | Other |
| Cable length (EF000536) | 2.7 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | No |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | CuSn |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -25 °C |
| Rated current In (EF008250) | 4 A |
| Rated voltage (EF000228) | 48 V |
| Degree of protection (IP) (EF005474) | IP65 |
