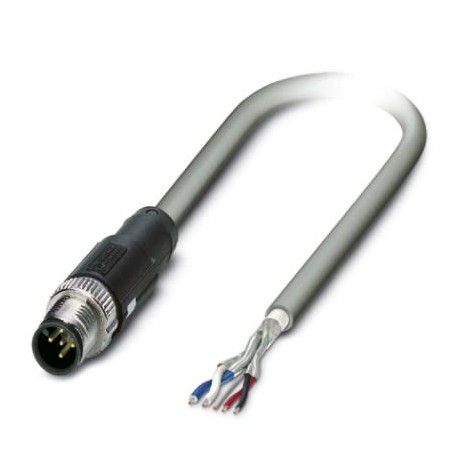

SAC-5P-MS/10,0-924 1405979 PHOENIX CONTACT Bus system cable
SAC-5P-MS/10,0-924
1405979
PHOENIX CONTACT
50 Pcs.
Bus system cable
Bus system cable, CANopen®, DeviceNet™, 5-pole, PVC, grey, shielded, M12 straight male connector, coding: A, to free cable end, cable length: 10 m, Unshielded plug-in connector
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1405979 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356800495 |
| Weight per Piece (excluding packing) | 631.500 g |
| Custom tariff number | 85444290 |
| Country of origin | US (United States) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 90 °C (Plug / socket) |
|---|---|
| Degree of protection | IP65 |
| IP67 | |
| IP68 |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 48 V AC |
| 60 V DC | |
| Number of positions | 5 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Signal type/category | CANopen® |
| DeviceNet™ | |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Torque | 0.4 Nm (M12 connector) |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Material, knurls | Zinc die-cast, nickel-plated |
Cable
| Cable type | CAN Bus/DeviceNet gray |
|---|---|
| Cable type (abbreviation) | 924 |
| UL AWM style | 2464 (80°C/300 V) |
| Cable structure | 2xAWG22 (Signal) + 2xAWG22 (Power) |
| Conductor cross section | 2x 0.34 mm² (Signal line) |
| 2x 0.34 mm² (Power supply) | |
| AWG signal line | 22 |
| AWG power supply | 22 |
| Conductor structure signal line | 19x 0.15 mm |
| Conductor structure, voltage supply | 19x 0.15 mm |
| Core diameter including insulation | 1.27 mm ±0.05 mm (Signal line) |
| 2.24 mm ±0.13 mm (Power supply) | |
| Wire colors | Red-black, blue-white |
| Twisted pairs | 2 cores to the pair |
| Type of pair shielding | Plastic-coated aluminum foil, aluminum side inside |
| Overall twist | 2 pairs around a drain wire in the center to the core |
| Shielding | Plastic-coated aluminum foil with a filler litz wire, aluminum side outside |
| External sheath, color | gray |
| External cable diameter D | 6.9 mm ±0.13 mm |
| Minimum bending radius, flexible installation | 15 x D |
| Cable weight | 64.51 kg/km |
| Outer sheath, material | PVC |
| Material conductor insulation | Foamed PE (Signal line) |
| PVC (Power supply) | |
| Conductor material | Bare Cu litz wires |
| Insulation resistance | ≥ 59.38 Ω*m (Signal line) |
| ≥ 57.41 GΩ*km (Power supply) | |
| Working capacitance | nom. 78.74 pF (per meter) |
| Wave impedance | 120 Ω ±12 Ω |
| Signal runtime | 4.46 ns/m |
| Shield attenuation | 0.95 dB (f = 125 kHz) |
| 1.64 dB (f = 500 kHz) | |
| 2.3 dB (f = 1 MHz) | |
| Special properties | UL standards PLTC and ITC |
| Resistance to oil | yes |
| Other resistance | UV resistant |
| Ambient temperature (operation) | -30 °C ... 75 °C (cable, fixed installation) |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027060306eCl@ss 4.127060306eCl@ss 5.027061801eCl@ss 5.127061800eCl@ss 6.027279200eCl@ss 7.027279218eCl@ss 8.027279218eCl@ss 9.027060308
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 5 |
| Type of electrical connection, field-sided (EF005525) | Other |
| Positioning cable feed, field-sided (EF005928) | Other |
| Type of electrical connection, box-sided (EF005524) | M12 |
| Type of plug-in contact, box-sided (EF008386) | Male (plug) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 10 m |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Grey |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | Other |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -30 °C |
| Rated current In (EF008250) | 4 A |
| Rated voltage (EF000228) | 48 V |
| Degree of protection (IP) (EF005474) | IP65 |
