View larger
Images are for illustrative purposes only. Please refer to data sheet for details

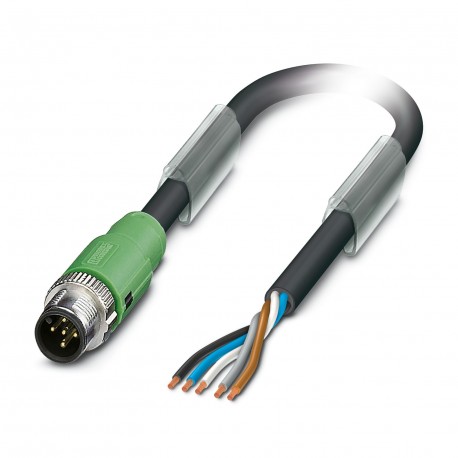

SAC-5P-MS/ 0,25-186 SCO 1544426 PHOENIX CONTACT Cable for sensors/actuators, 4-pole, PUR, black-gray RAL 702..
SAC-5P-MS/ 0,25-186 SCO
1544426
PHOENIX CONTACT
50 Pcs.
Cable for sensors/actuators, 4-pole, PUR, black-gray RAL 7021, Plug straight M12 SPEEDCON, coded, to the end of free cable, cable length: 0.25 m
Sensor/actuator cable, 4-pole, PUR, grayish black RAL 7021, Straight male connector M12 SPEEDCON, coding: A, to free cable end, cable length: 0.25 m
Sensor/actuator cable, 4-pin, PUR, grey-black RAL 7021, straight male M12 SPEEDCON, coding: A, on free conductor end, cable length: 0.25 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Cable for sensor / actuator, 4 -, Sz., PUR, dark gray RAL 7021, Plug straight M12 ALLOWS, AND coding, to the free end, cable length: 0.25 m
Commercial data
| Order code | One million five hundred forty four thousand four hundred twenty six |
|---|---|
| Packaging unit | 50 stk |
| Minimum order quantity | 50 stk |
| Note | Order-related production (return impossible) |
| GTIN | Four trillion forty six billion three hundred fifty six million one hundred fifteen thousand one hundred thirty one |
| Weight/PCs (without packing) | 32,220 GRM |
Dimensions
| Cable length | 0.25 m |
|---|---|
| Stripping length of insulation from cable end without connector | 50 mm |
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| IP67 | |
| IP68 |
General information
| Rated current at 40 ℃ | 4 A |
|---|---|
| Rated voltage | 48 V AC |
| 60 V DC | |
| Poles | Four |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Status indicator | No |
| Overvoltage category | II |
| Pollution degree | Three |
Material
| Class of Flammability according to UL 94 | HB |
|---|---|
| Material, contact | CuSn |
| Material contact surface | Ni/Au |
| The material holder contact | TPU GF |
| Body material handles | TPU, flame-retardant., self-extinguishing |
| Material knurled nuts | Zinc. diecast, Nickel-plated |
Standards and regulations
| Class of Flammability according to UL 94 | HB |
|---|
Cable
| Cable type | PUR POWER 0.75 mm2 colour black |
|---|---|
| Cable type (short designation) | One hundred eighty six |
| Symbol cable | LiY11Y |
| Wire cross-section | 5x 0.75 mm2 (Cable power) |
| AWG signal line | Eighteen |
| Cable design, the signal line | 42x 0.15 mm |
| Conductor diameter incl. insulation | 1.7 mm ±0.05 mm |
| Wall thickness, insulation | ≥ 0.23 mm (core Insulation) |
| ≥ 0.76 mm (Outer shell) | |
| Color lived | black, brown, blue, white, gray |
| General twisting | 5 wire with a filler for core |
| Outer shell, color | dark gray RAL 7021 |
| Outer diameter of cable D | 6.3 mm ±0.2 mm |
| Minimum bending radius, when the movable spacer | 63 mm |
| The number of bending cycles | Two million |
| Bending radius | 63 mm |
| Travel | 5 m |
| The speed of lateral movement | 3 m/c |
| Acceleration | 5 m/S2 |
| Weight of cable | 67 kg/km |
| Outer sheath, material | PUR |
| Material conductor insulation | PVC |
| Conductor material | copper flexible wire |
| Insulation resistance | ≥ 1 MΩ*km (at 20 °C) |
| The resistance of the cable | max. 26 Ohm/km (at 20 °C) |
| Nominal voltage, conductor | ≤ 300 V |
| Test voltage, conductor | ≥ 3000 V |
| Incombustibility | according to UL-style 20549 |
| Ambient temperature (operating) | -25 °C ... 80 °C (cable firmly laid) |
| -5 °C ... 80 °C (cable, for flexible installation) |
Environmental Product Compliance
| China RoHS | The time period to use: ∞ = EFUP-e |
|---|---|
| Does not contain hazardous substances beyond the threshold |
Classification
eCl@ss
| eCl@ss 4.0 | Twenty seven million sixty thousand three hundred six |
|---|---|
| eCl@ss 4.1 | Twenty seven million sixty thousand three hundred six |
| eCl@ss 5.0 | Twenty seven million sixty one thousand eight hundred one |
| eCl@ss 5.1 | Twenty seven million sixty one thousand eight hundred |
| eCl@ss 6.0 | Twenty seven million two hundred seventy nine thousand two hundred |
| eCl@ss 7.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| eCl@ss 8.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| eCl@ss 9.0 | Twenty seven million sixty thousand three hundred eleven |
ETIM
| ETIM 3.0 | EC001855 |
|---|---|
| ETIM 4.0 | EC001855 |
| ETIM 5.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
UNSPSC
| UNSPSC 6.01 | Thirty one million two hundred fifty one thousand five hundred one |
|---|---|
| UNSPSC 7.0901 | Thirty one million two hundred fifty one thousand five hundred one |
| UNSPSC 11 | Thirty one million two hundred fifty one thousand five hundred one |
| UNSPSC 12.01 | Thirty one million two hundred fifty one thousand five hundred one |
| UNSPSC 13.2 | Thirty one million two hundred fifty one thousand five hundred one |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
| Type of electrical connection, field-sided (EF005525) | M12 |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | Other |
| Positioning cable feed, box-sided (EF005927) | Other |
| Cable length (EF000536) | 0.25 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | No |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | CuSn |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -25 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -5 °C |
| Rated current In (EF008250) | 4 A |
| Rated voltage (EF000228) | 48 V |
| Degree of protection (IP) (EF005474) | IP65 |
