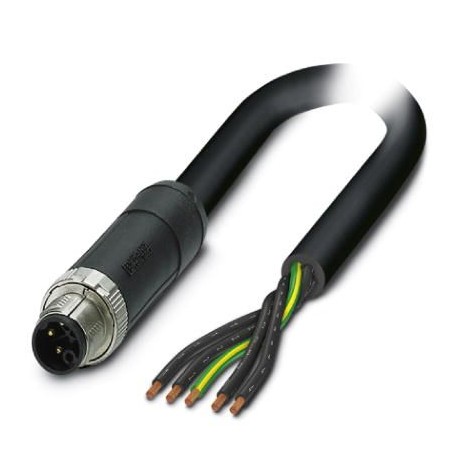

Power cable Power cable, 5-pole halogen-free, Straight M12 connector, coding: K, to free cable end, cable length: 10 m, for AC up to 16 A/690 V

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1414879
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 296 (C-2-2017)
GTIN4055626035093
Weight per Piece (excluding packing)1,784.850 g
Custom tariff number85444290
Country of originPL (Poland)

Dimensions

Length of cable10 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
Degree of protectionIP65
IP67
IP68

General

Rated current at 40°C16 A
Rated voltage690 V AC
Number of positions5
Color handle areablack
Insulation resistance≥ 100 MΩ
CodingK - Power
Standards/regulationsM12 connector IEC 61076-2-111
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryIII
Degree of pollution3
Insertion/withdrawal cycles≥ 100
Torque0.4 Nm (M12 connector)

Material

Flammability rating according to UL 94V0
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPA
Material of grip bodyPA
Material, knurlsZinc die-cast, nickel-plated

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-111
Flammability rating according to UL 94V0

Cable

Cable typePUR halogen-free black
Cable type (abbreviation)PUR
UL AWM style22078 / 11560 (90 °C / 1000 V)
Conductor cross section5x 2.5 mm²
AWG power supply14
Conductor structure, voltage supply141x 0.15 mm
Core diameter including insulation2.8 mm ±0.1 mm
Thickness, insulation≥ 0.36 mm
Wire colorsBlack 1, black 2, black 3, black 4, green/yellow
External sheath, colorblack-gray RAL 7021
Outer sheath thicknessapprox. 1.15 mm
External cable diameter D9.7 mm ±0,3 mm
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Number of bending cycles4000000
Minimum bending radius, drag chain applications10 x D
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Cable weight189 kg/km
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance≥ 1 GΩ*km (at 20 °C)
Conductor resistance≤ 8 Ω/km (at 20 °C)
Nominal voltage, cable≤ 1000 V AC
Test voltage, cable≥ 10000 V AC (Spark test)
Flame resistanceAccording to UL 758/1581 (Cable Flame)
according to UL 758/1581 FT1
According to DIN EN 60332-1-2
Halogen-freein accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Resistance to oilaccording to DIN EN 60811-404, 168 h at 100 °C
Other resistanceHydrolysis and microbe resistant as per VDE 0282 section 10
Low adhesion
abrasion-resistant
Resistant to salt water
Ambient temperature (operation)-50 °C ... 90 °C (cable, fixed installation)
-30 °C ... 90 °C (cable, flexible installation)

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1414879 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 5
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) Other
Positioning cable feed, box-sided (EF005927) Other
Cable length (EF000536) 10 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -50 °C
Permitted cable outer temperature during assembling/handling (EF001685) -30 °C
Rated voltage (EF000228) 690 V
Degree of protection (IP) (EF005474) IP65
