SAC-5P-M12MS/60,0-PUR/M12FS SH

1058963

PHOENIX CONTACT

15 Pcs.

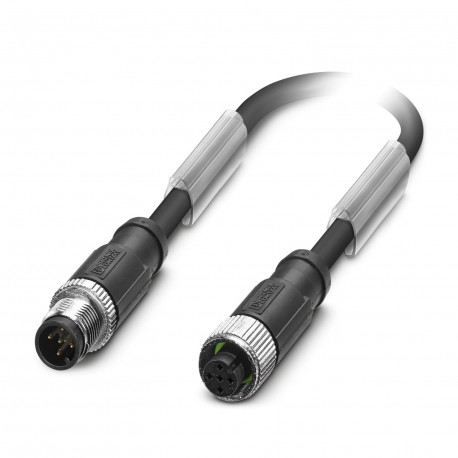

Sensor/actuator cable, 5-position, PUR halogen-free, black-gray RAL 7021, shielded, Plug straight M12, A-coded, on Socket straight M12, A-coded, cable length: 60 m Sensor/actuator cable, 5-pole, halogen-free PUR, greyish black RAL 7021, shielded, M12 straight male connector, encoding: A, to M12 straight connection female, encoding: A, cable length: 60 m Sensor/actuator cable, 5-position, PUR halogen-free, black-gray RAL 7021, shielded (Advanced Shielding Technology), Plug straight M12, coding: A, on Socket straight M12, coding: A, cable length: 60 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeSensor/actuator cable
ApplicationStandard
Number of positions5
Shieldedyes
Data management status
Article revision02
Signaling
Status displayno
Status display presentNo
Connection data
Conductor connection
Tightening torque0.4 Nm (M12 connector)
Connector
Connection 1
TypePlug straight M12
Number of positions5
Coding typeA
Connection 2
TypeSocket straight M12
Number of positions5
Coding typeA
Cable/line
Cable length60 m
PUR halogen-free black [PUR]
Dimensional drawingnfscghhycy.jpg
Cable weight43 kg/km
UL AWM Style20549 / 10493 (80°C/300 V)
Number of positions5
Shieldedyes
Cable typePUR halogen-free black [PUR]
Conductor structure signal line42x 0.10 mm
AWG signal line22
Conductor cross section5x 0.34 mm² (Signal line)
Wire diameter incl. insulation1.27 mm ±0.02 mm (Signal line)
External cable diameter5.25 mm ±0.2 mm
Outer sheath, materialPUR
External sheath, colorblack-gray RAL 7021
Conductor materialBare Cu litz wires
Material wire insulationPP
Single wire, colorbrown, white, blue, black, gray
Thickness, insulation≥ 0.21 mm
Thickness, outer sheathapprox. 0.50 mm
Overall twist5 wires around filler to the core
Optical shield covering80 %
Max. conductor resistancemax. 57 Ω/km (at 20 °C)
Insulation resistance70 GΩ*km (at 20 °C)
Nominal voltage, cable300 V (at 20 °C)
Test voltage Core/Core3000 V (at 20 °C)
Smallest bending radius, fixed installation26 mm
Smallest bending radius, movable installation52 mm (up to +60 °C)
Dynamic load capacity (bending)Max. bending cycles: 10000000, Bending radius: 52 mm, Traversing path: 10 m, Traversing rate: 3 m/s, Acceleration: 10 m/s²
Halogen-freein accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Flame resistancein accordance with UL 758/1581 FT2
DIN EN 60332-2-2 (20 s)
Resistance to oilin accordance with DIN EN 60811-2-1
Other resistanceHighly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant
Resistant to salt water
partly UV-resistant (in accordance with DIN EN ISO 4892-2-A)
abrasion-resistant
Special propertiesFlexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or varnish
Low adhesion surface
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (Cable, flexible installation)
Standards and regulations
Standard designationM12 connector
Standards/specificationsIEC 61076-2-101

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
