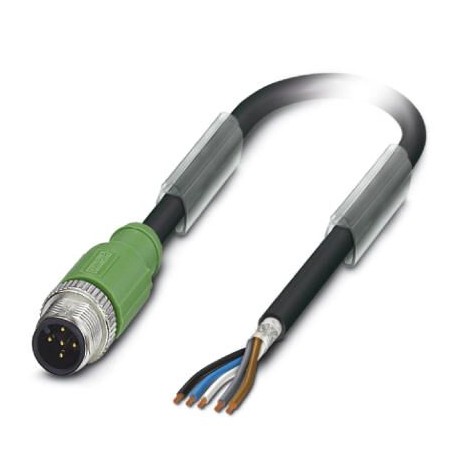

Sensor/actuator cable - SAC-5P-M12MS/40,0-PUR SH - 1424079 Sensor/actuator cable, 5-pole, halogen-free PUR, greyish black RAL 7021, shielded, M12 straight connector, coding: A, to free cable end, cable length: 40 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Sensor/actuator cable, 5-position, PUR halogen-free, black-gray RAL 7021, shielded, Plug straight M12, A-coded, on free cable end, cable length: 40 m

Key Commercial Data

Orderkey1424079
Packing unit1
GTIN4055626367644
Custom tariff number85444290

Dimensions

Length of cable40 m

General

Rated current at 40°C4 A
Rated voltage48 V AC
60 V DC
Number of positions5
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles≥ 100
Torque0.4 Nm (M12 connector)

Material

Flammability rating according to UL 94HB
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94HB

Cable

Cable typePUR halogen-free black
Cable type (abbreviation)PUR
Cable abbreviationLiF9YC11Y
UL AWM style20549
Conductor cross section5x 0.34 mm² (Signal line)
AWG signal line22
Conductor structure signal line42x 0.10 mm
Core diameter including insulation1.27 mm ±0.02 mm (Signal line)
Wire colorsBrown, white, blue, black, gray
Overall twist5 wires around filler to the core
ShieldingTinned copper braided shield
Optical shield covering80 %
External sheath, colorblack-gray RAL 7021
External cable diameter D5.25 mm ±0.2 mm
Smallest bending radius, fixed installation26 mm
Smallest bending radius, movable installation52 mm (up to +60°C)
Number of bending cycles10000000
Bending radius52 mm
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance70 GΩ*km (at 20 °C)
Conductor resistancemax. 57 Ω/km (at 20 °C)
Nominal voltage, cable300 V (at 20 °C)
Test voltage Core/Core3000 V (at 20 °C)
Special propertiesFlexible cable conduit capable
Flame resistancein accordance with UL 758/1581 FT2
DIN EN 60332-2-2 (20 s)
Halogen-freein accordance with DIN VDE 0472 part 815
Resistance to oilin accordance with DIN EN 60811-2-1
Other resistancehydrolysis and microbe resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 9.027060311

ETIM

ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855

ETIM for 1424079 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 5
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) Other
Positioning cable feed, box-sided (EF005927) Other
Cable length (EF000536) 40 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -25 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65
