SAC-5P-M12MS/ 2,0-PUR/M12FR3LVW

1501537

PHOENIX CONTACT

25 Pcs.

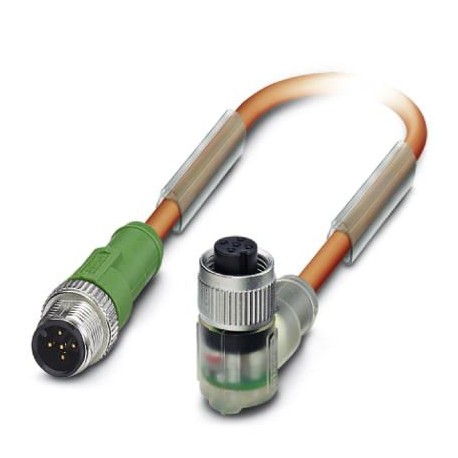

Sensor/actuator cable Sensor/actuator cable, 5-pole, halogen-free PUR, irradiation-cross-linked, orange RAL 2003, Straight male connector M12, coding: A, to Elbow connection female M12, coding: A, with 3 LEDs, cable length: 2 m, Customer-specific variants

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1501537
Packing unit5 pc
Minimum order quantity25 pc
NoteMade to Order (non-returnable)
GTIN4017918604226
Weight per Piece (excluding packing)107.910 g
Custom tariff number85444290
Country of originPL (Poland)

Dimensions

Length of cable2 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)
Degree of protectionIP65
IP67
IP68

General

Rated current at 40°C4 A
Rated voltage24 V
24 V DC
Number of positions5
Insulation resistance≥ 100 MΩ
CodingA - standard
Status display3 LEDs
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles≥ 100

Material

Flammability rating according to UL 94HB
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR

Standards and Regulations

Flammability rating according to UL 94HB

Cable

Cable typePUR irradiated halogen-free orange
Cable type (abbreviation)150
Cable abbreviationD12YSL11X-JB
Conductor cross section4x 0.34 mm² (Signal line)
1x 0.5 mm² (PE connection)
AWG signal line22
AWG power supply20
Conductor structure signal line42x 0.10 mm
Conductor structure, voltage supply24x 0.15 mm
Wire colorsBrown, blue, black, white, green/yellow
Overall twist5 cores, twisted
External sheath, colororange RAL 2003
External cable diameter D5.2 mm ±0.2 mm
Smallest bending radius, fixed installationmin. 20 mm
Smallest bending radius, movable installationmin. 30 mm
Number of bending cycles5000000
Bending radius52 mm
Traversing path10 m
Traversing rate3 m/s
Outer sheath, materialPUR
Material conductor insulationPE
Conductor materialBare Cu litz wires
Conductor resistance≤ 57.5 Ω/km (with 0.34 mm² conductor cross section)
≤ 39 Ω/km (with 0.5 mm² conductor cross section)
Nominal voltage, cable250 V (AC)
Test voltage, cable2000 V (50 Hz, 5 minutes)
Special propertiesSilicone-free
Irradiated
Flame resistanceDIN VDE 0472 part 804, test type B
Halogen-freeThe cable is halogen-free
Other resistancehydrolysis and microbe resistant
UV resistant
Resistant to welding splashes
Ambient temperature (operation)-50 °C ... 105 °C (cable, fixed installation)
-40 °C ... 105 °C (cable, flexible installation)

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet
