View larger
Images are for illustrative purposes only. Please refer to data sheet for details

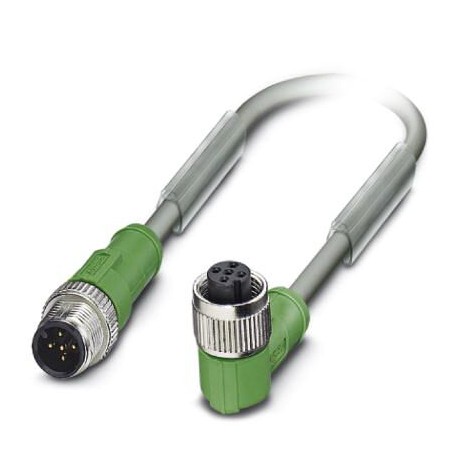

SAC-5P-M12MS/ 2,0-802/M12FR 1454545 PHOENIX CONTACT Cable for sensors/actuators, 5-pole, PUR halogen-free, h..
SAC-5P-M12MS/ 2,0-802/M12FR
1454545
PHOENIX CONTACT
1 Pcs.
Cable for sensors/actuators, 5-pole, PUR halogen-free, highly flexible, gray RAL 7001, Plug straight M12, coded A, A connection socket angled M12, coded, cable length: 2 m
Sensor/actuator cable, 5-pole, halogen-free, solder-resistant, highly flexible, grey RAL 7001, M12 straight male connector, encoding: A, to M12 angled connection female, coding: A, cable length: 2 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Cable for sensors/actuators, 5-pole, PUR halogen-free, resistant to sparks of welding, highly flexible, gray RAL 7001, Plug straight M12, coded A, A connection socket angled M12, coded, cable length: 2 m
Data commercial
| Key order | One million four hundred fifty four thousand five hundred forty five |
|---|---|
| Packing unit | 1 pcs |
| Key selling | BF1CDA - |
| EAN | Four trillion forty six billion three hundred fifty six million five hundred seventy eight thousand two hundred forty |
| Unit weight (excluding packaging) | 90,000 g |
| Tariff number tariff | Eighty five million four hundred forty four thousand two hundred ninety |
| Country of origin | PL (Poland) |
Measures
| Cable length | 2 m |
|---|
Environmental conditions
| Room temperature (service) | -25 °C ... 90 °C (male / female) |
|---|---|
| Index of protection | IP65 |
| IP67 | |
| IP68 |
Overview
| Current sizing at 40 °C | 4 To |
|---|---|
| Tension sizing | 48 V AC |
| 60 V DC | |
| Number of poles | Five |
| Insulation resistance | ≥ 100 MΩ |
| Encoding | A - standard |
| Status indication | Not |
| Category surge | II |
| Pollution degree | Three |
Material
| Class of flammability according to UL 94 | HB |
|---|---|
| Material contact | CuSn |
| Material contact surface | Ni/Au |
| Material support of contacts | TPU GF |
| Material body grip | TPU fire-retardant, self-extinguishing |
| Material knurled | Die-cast zinc, nickel plated |
| Material of the board | NBR |
Standards and specifications
| Class of flammability according to UL 94 | HB |
|---|
Cable
| Observation | Due to their outer casing of high strength, this cable is peeling in steps of 5 cm |
|---|---|
| Type of cable | PUR halogen-free, highly flexible, resistant to sparks of welding, grey |
| Cable type (abbreviation) | Eight hundred two |
| Abbreviation of cable | Li12Y11Y-HF |
| Section of driver | 5x 0,34 mm2 (driver signals) |
| Signal cable AWG | Twenty two |
| Construction of the driver signal cable | 42x 0.10 mm |
| Diameter of the conductors, insulation included | 1.3 mm ±0.05 mm (conductor signals) |
| Colors driver | black, brown, blue, white, yellow/green |
| Cabling total | 5 drivers around padding as soul |
| Outer wrap, color | grey RAL 7001 |
| Outer diameter of cable D | 5.1 mm ±0.2 mm |
| Minimum bending radius, placed in a fixed manner | 5 x D |
| Minimum bending radius, placed in a flexible way | 5 x D |
| Number of bending cycles | Ten million |
| Radius of curvature, insert drag chains | 7,5 x D |
| Journey forward | 5 m |
| Forward speed | 3.3 m/s |
| Acceleration | 5 m/s2 |
| Number of bending cycles | Fifteen million |
| Bending radius | 50 mm |
| Journey forward | 0.9 m |
| Forward speed | 5 m/s |
| Acceleration | 30 m/s2 |
| Solicitation by torsion | ± 360 °/m (1 000 000 of cycles of torque) |
| Outer casing, material | PUR |
| Material Insulation conductor | PES |
| Conductive Material | Conductor Cu bare |
| Insulation resistance | ≥ 20 MΩ*km |
| Resistance of the conductor | approx. 53 Ω/km |
| Rated voltage Cable | 300 V |
| Test voltage Cable | 1200 V |
| Special features | Cable sheath resistant to sparks of welding, can be recycled, matt, without adhesion, abrasion resistant, retardadora flame and self-extinguishing |
| does not contain silicone or cadmium | |
| without any substances disturbing the wettability paintings | |
| Flame resistance | DIN VDE 0472 p. 804, test type B |
| IEC 60332-1 | |
| according to UL FT-2 | |
| Absence of halogen | the cable does not contain halogen |
| Oil resistance | according to VDE 0472 part 803 |
| Other resistors | good resistance to acids, alkalis and solvents |
| without silicone | |
| Room temperature (service) | -40 °C ... 90 °C (cable, fixed) |
| -30 °C ... 90 °C (cable, available mobile) | |
| up to 120 °C (for 3000 h) |
Environmental Product Compliance
| China RoHS | Space of time for the intended use: unlimited = FEUP-e |
|---|---|
| No dangerous substances above the thresholds |
Ratings
eCl@ss
| eCl@ss 4.0 | Twenty seven million sixty thousand three hundred six |
|---|---|
| eCl@ss 4.1 | Twenty seven million sixty thousand three hundred six |
| eCl@ss 5.0 | Twenty seven million sixty one thousand eight hundred one |
| eCl@ss 5.1 | Twenty seven million sixty one thousand eight hundred |
| eCl@ss 6.0 | Twenty seven million two hundred seventy nine thousand two hundred |
| eCl@ss 7.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| eCl@ss 8.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| eCl@ss 9.0 | Twenty seven million sixty thousand three hundred eleven |
ETIM
| ETIM 3.0 | EC001855 |
|---|---|
| ETIM 4.0 | EC001855 |
| ETIM 5.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
UNSPSC
| UNSPSC 6.01 | Thirty one million two hundred fifty one thousand five hundred one |
|---|---|
| UNSPSC 7.0901 | Thirty one million two hundred fifty one thousand five hundred one |
| UNSPSC 11 | Thirty one million two hundred fifty one thousand five hundred one |
| UNSPSC 12.01 | Thirty one million two hundred fifty one thousand five hundred one |
| UNSPSC 13.2 | Thirty one million two hundred fifty one thousand five hundred one |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 5 |
| Type of electrical connection, field-sided (EF005525) | M12 |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | M12 |
| Type of plug-in contact, box-sided (EF008386) | Female (bus) |
| Positioning cable feed, box-sided (EF005927) | Angled |
| Cable length (EF000536) | 2 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | No |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | CuSn |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -25 °C |
| Rated current In (EF008250) | 4 A |
| Rated voltage (EF000228) | 48 V |
| Degree of protection (IP) (EF005474) | IP65 |
