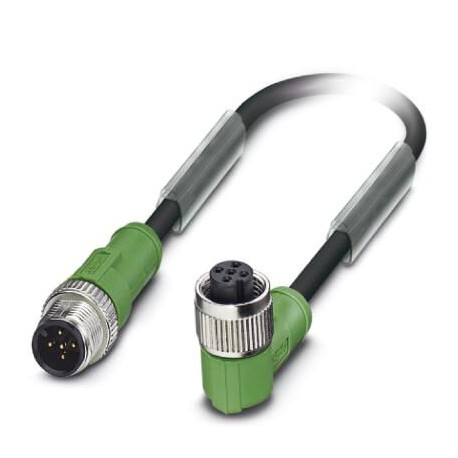

PHOENIX CONTACT SAC-5P-M12MS/ 1,5-PUR/M12FR VA SAC-5P-M12MS/ 1,5-PUR/M12FR VA 1426381 PHOENIX CONTACT Sensor/actuator cable SAC-5P-M12MS/ 1,5-PUR/M12FR VA .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-5P-M12MS/ 1,5-PUR/M12FR VA 1426381 PHOENIX CONTACT Sensor/actuator cable SAC-5P-M12MS/ 1,5-PUR/M12FR VA ..

SAC-5P-M12MS/ 1,5-PUR/M12FR VA

1426381

PHOENIX CONTACT

100 Pcs.

Sensor/actuator cable - SAC-5P-M12MS/ 1,5-PUR/M12FR VA - 1426381

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Sensor/actuator cable, 5-position, PUR halogen-free, black-gray RAL 7021, cable length: 1.5 m

Key Commercial Data

Orderkey1426381
Packing unit1
GTIN4055626459318
Custom tariff number85444290

Dimensions

Length of cable1.5 m

General

Rated current at 40°C4 A
Rated voltage48 V AC
60 V DC
Number of positions5
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryII
Degree of pollution3

Material

Flammability rating according to UL 94HB
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94HB

Cable

Cable typePUR halogen-free black
Cable type (abbreviation)PUR
Cable abbreviationLi9Y11Y
UL AWM style20549 / 10493 (80°C/300 V)
Conductor cross section5x 0.34 mm² (Signal line)
AWG signal line22
Conductor structure signal line42x 0.10 mm
Core diameter including insulation1.27 mm ±0.02 mm (Signal line)
Thickness, insulation≥ 0.21 mm
Wire colorsbrown, white, blue, black, green-yellow
Overall twist5 wires around filler to the core
External sheath, colorblack-gray RAL 7021
Outer sheath thicknessapprox. 0.7 mm
External cable diameter D5 mm ±0.15 mm
Smallest bending radius, fixed installation25 mm
Smallest bending radius, movable installation50 mm
Number of bending cycles4000000
Bending radius50 mm
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Cable weight35 kg/km
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance≥ 16 GΩ*km (at 20 °C)
Conductor resistancemax. 58 Ω/km (at 20 °C)
Nominal voltage, cable300 V
Test voltage, cable3000 V
Special propertiesFlexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or varnish
flexible
Flame resistancein accordance with DIN UL-Style 20549
Halogen-freein accordance with DIN VDE 0472 part 815
Resistance to oilin accordance with DIN EN 60811-2-1
Other resistanceHighly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant
Resistant to salt water
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 9.027060311

ETIM

ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
