View larger
Images are for illustrative purposes only. Please refer to data sheet for details

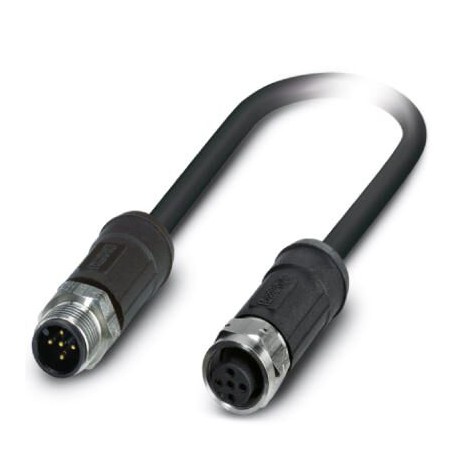

SAC-5P-M12MS/10-92X/M12FSSHOD 1414223 PHOENIX CONTACT Bus system cable SAC-5P-M12MS/10-92X/M12FSSHOD 1414223
SAC-5P-M12MS/10-92X/M12FSSHOD
1414223
PHOENIX CONTACT
25 Pcs.
Bus system cable - SAC-5P-M12MS/10-92X/M12FSSHOD - 1414223
Bus System Cable, CANopen®, DeviceNet™, 5-pole halogen-free, shielded, Straight connector M12, encoding: A, to Straight female M12, coding: A, cable length: 10 m, for outdoor applications, with stainless steel knurling
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Bus system cable, CANopen®, DeviceNet™, 5-position, FRNC halogen-free, black, shielded, Plug straight M12, A-coded, on Socket straight M12, A-coded, cable length: 10 m, for outdoor applications, with high-grade steel knurl
Key Commercial Data
| Orderkey | 1414223 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626020198 |
| Custom tariff number | 85444290 |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 5.1 | 27061800 |
|---|---|
| eCl@ss 6.0 | 27279200 |
| eCl@ss 7.0 | 27279218 |
| eCl@ss 8.0 | 27279218 |
| eCl@ss 9.0 | 27060311 |
ETIM
| ETIM 5.0 | EC001855 |
|---|---|
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
UNSPSC
| UNSPSC 13.2 | 31251501 |
|---|
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 5 |
| Type of electrical connection, field-sided (EF005525) | M12 |
| Type of plug-in contact, field sided (EF006269) | Female (bus) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | M12 |
| Type of plug-in contact, box-sided (EF008386) | Male (plug) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 10 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Black |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | Other |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Rated current In (EF008250) | 4 A |
| Rated voltage (EF000228) | 48 V |
| Degree of protection (IP) (EF005474) | IP65 |
