PHOENIX CONTACT SAC-5P-M12MS/ 1,0-802/M12FS SAC-5P-M12MS/ 1,0-802/M12FS 1454574 PHOENIX CONTACT Cable for sensors/actuators, 5-pole, PUR halogen-free, r.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-5P-M12MS/ 1,0-802/M12FS 1454574 PHOENIX CONTACT Cable for sensors/actuators, 5-pole, PUR halogen-free, r..

SAC-5P-M12MS/ 1,0-802/M12FS

1454574

PHOENIX CONTACT

1 Pcs.

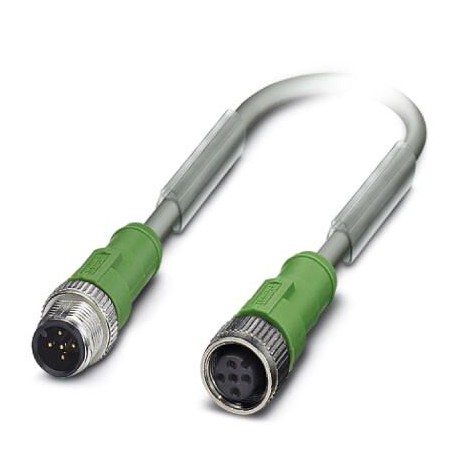

Cable for sensors/actuators, 5-pole, PUR halogen-free, resistant to welding spatter, highly flexible, gray RAL 7001, Plug straight M12, coded A, A connection socket straight M12, coded, cable length: 1 m Sensor/actuator cable, 5-pole, halogen-free, solder-resistant, highly flexible, grey RAL 7001, M12 straight male connector, encoding: A, to M12 straight connection female, encoding: A, cable length: 1 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Sensor/actuator cable, 5-pole, PUR halogen-free, weld-spark-resistant, highly flexible, grey RAL 7001, plug straight M12, A-coded, on socket straight M12, A-coded, cable length: 1 m

Commercial data

Order key1454574
Packaging unit1 PC
Sales keyC1 - Sensor-Actuator Cable
NoteMade-to-order production (no returns)
GTIN4046356578264
Weight per piece (excluding packaging)55,700 g
Weight per piece (including packaging)57,900 g
Customs tariff number85444290
Country of originPL (Poland)

Dimensions

Cable length1 m

Environmental conditions

Ambient temperature (operating)-25 °C ... 90 °C (plug/socket)
Degree of protectionIP65
IP67
IP68

General

Rated current at 40 °C4 A
Rated voltage48 V AC
60 V DC
Number of poles5
Insulation resistance≥ 100 MΩ
CodingA - Standard
Status displayYes
Surge CategoryII
Degree of contamination3

Material

Flammability class according to UL 94HB
Material ContactCuSn
Contact surface materialNi/Au
Material Contact CarrierTPU GF
Material Handle BodyTPU, flame retardant, self-extinguishing
Material KnurlingDie-cast zinc, nickel-plated
Material GasketNBR

Standards and regulations

Flammability class according to UL 94HB

Management

NoteDue to the very robust outer sheath, this cable can only be stripped in 5 cm steps.
Cable TypePUR, halogen-free, highly flexible, weld-spark-resistant, grey
Cable type (characters)802
Cable abbreviationsLi12Y11Y-HF
Conductor cross-section5x 0.34 mm² (signal line)
AWG signal line22
Conductor structure Signal cable42x 0.10 mm
Core diameter incl. insulation1.3 mm ±0.05 mm (signal line)
Core coloursblack, brown, blue, white, green/yellow
Total stranding5 veins around filler to the soul
Outer Jacket, Colourgrey RAL 7001
Cable outer diameter D5.1 mm ±0.2 mm
Minimum bending radius, fixed5 x D
Minimum bending radius, flexibly laid5 x D
Number of bending cycles10000000
Minimum bending radius, drag chain insert7.5 x D
Travel5 m
Travel speed3.3 m/s
Acceleration5 m/s²
Number of bending cycles15000000
Bending radius50 mm
Travel0.9 m
Travel speed5 m/s
Acceleration30 m/s²
Torsional stress± 360 °/m (1 000 000 torsion cycles)
Outer Jacket, MaterialPUR
Material Core InsulationPES
Material Conductorbare copper wire
Insulation resistance≥ 20 MΩ*km
Conductor resistanceapprox. 53 Ω/km
Nominal voltage line300 V
Test voltage cable1200 V
Special featuresCable sheath weld-resistant, recyclable, matte, low-adhesion, abrasion-resistant, flame-retardant and self-extinguishing
Silicone and cadmium-free
Free of substances that interfere with paint wetting
Flame retardancyDIN VDE 0472 T.804, Test Type B
IEC 60332-1
according to UL FT-2
Halogen-freethe cable is halogen-free
Oil resistanceaccording to VDE 0472 Part 803
Other DurabilityGood resistance to acids, alkalis and solvents
Silicone-free
Ambient temperature (operating)-40 °C ... 90 °C (cable, fixed installation)
-30 °C ... 90 °C (cable, movable installation)
up to 120 °C (for 3000 h)

Environmental Product Compliance

China RoHSPeriod of intended use: unlimited = EFUP-e
No hazardous substances above the limit values

Classifications

eCl@ss

eCl@ss 4.027060306
eCl@ss 4.127060306
eCl@ss 5.027061801
eCl@ss 5.127061800
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311

ETIM

ETIM 3.0EC001855
ETIM 4.0EC001855
ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855

UNSPSC

UNSPSC 6.0131251501
UNSPSC 7.090131251501
UNSPSC 1131251501
UNSPSC 12.0131251501
UNSPSC 13.231251501

ETIM for 1454574 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 5
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 1 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -25 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
