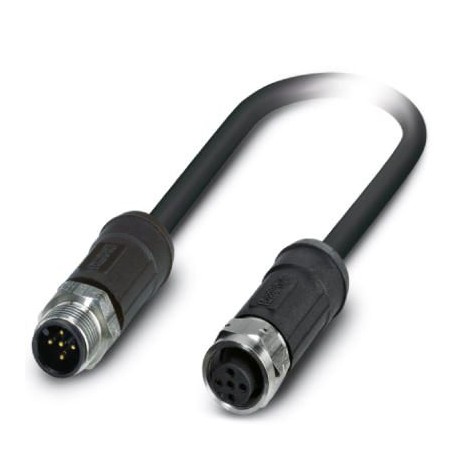

PHOENIX CONTACT SAC-5P-M12MS/10-28X/M12FSSH OD SAC-5P-M12MS/10-28X/M12FSSH OD 1057663 PHOENIX CONTACT Sensor/actuator cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-5P-M12MS/10-28X/M12FSSH OD 1057663 PHOENIX CONTACT Sensor/actuator cable

SAC-5P-M12MS/10-28X/M12FSSH OD

1057663

PHOENIX CONTACT

50 Pcs.

Sensor/actuator cable Sensor/actuator cable, 5-pole, halogen-free PE-X/PE-X, greyish black RAL 7021, shielded, M12 straight male connector, encoding: A, to M12 straight connection female, encoding: A, cable length: 10 m, for outdoor applications, with stainless steel knurling

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1057663
Packing unit1 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
GTIN4055626701707
Weight per Piece (excluding packing)893.800 g
Custom tariff number85444290
Country of originPL (Poland)

Dimensions

Length of cable10 m

Ambient conditions

Ambient temperature (operation)-40 °C ... 105 °C (Plug / socket)

General

Rated current at 40°C4 A
Rated voltage48 V AC
60 V DC
Number of positions5
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Protective circuit/componentunwired
Degree of pollution3

Material

Flammability rating according to UL 94V0
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPP
Material of grip bodyPP
Material, knurlsStainless steel
Sealing materialFPM

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94V0

Cable

Cable typePE-X black
Cable type (abbreviation)28X
Cable abbreviationLi2X2X-C-V1-2X
Conductor cross section5x 0.5 mm²
AWG signal line20
Conductor structure signal line28x 0.15 mm
Core diameter including insulation1.6 mm ±0.5 mm
Thickness, insulationapprox. 0.3 mm (Core insulation)
Wire colorsBrown, white, blue, black, gray
Overall twist5 wires around filler to the core
Length of twist, overall twist68 mm
ShieldingBraided copper wires
Optical shield covering85 %
External sheath, colorblack-gray RAL 7021
Inner sheath thicknessapprox. 0.5 mm
Outer sheath thicknessapprox. 0.7 mm
External cable diameter D7.25 mm ±0,3 mm
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Number of bending cycles1000000
Minimum bending radius, drag chain applications10 x D
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Cable weight85 kg/km
Outer sheath, materialPE-X
Material, inner sheathPE-X
Material, fillerPP yarn
Material conductor insulationPE-X
Conductor materialBare Cu litz wires
Insulation resistance≥ 100 MΩ*km (at 20 °C)
Conductor resistance≤ 39 Ω/m (at 20 °C)
Working capacitance≤ 110 pF (core-core)
≤ 200 pF (core-shield)
Nominal voltage, cable≤ 300 V AC
Test voltage, cable≥ 3000 V AC (Spark test)
Test voltage Core/Shield≥ 1000 V AC (for 10 s)
Special propertiesInductance approx. 0.48 mH/km
Irradiated
Flame resistanceAccording to DIN EN 60332-1-2
according to DIN EN 50266-2-5
Halogen-freein accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Resistance to oilAccording to DIN EN 60811-2-1, 168 h at 100°C
According to DIN EN 50306
Other resistanceResistance to fuels according to IEC 60811, 168 h at 70°C
UV resistant according to DIN VDE 0276-605
UV resistant in accordance with DIN EN ISO 4892-2-A (750 h)
Ambient temperature (operation)-40 °C ... 105 °C (cable, fixed installation)
-15 °C ... 105 °C (cable, flexible installation)
20 °C ±5 °C (cable, drag chain applications)

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1057663 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 5
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 10 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -15 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65
