SAC-5P-M12MS/1,0-28X/M12FS OD

1057278

PHOENIX CONTACT

50 Pcs.

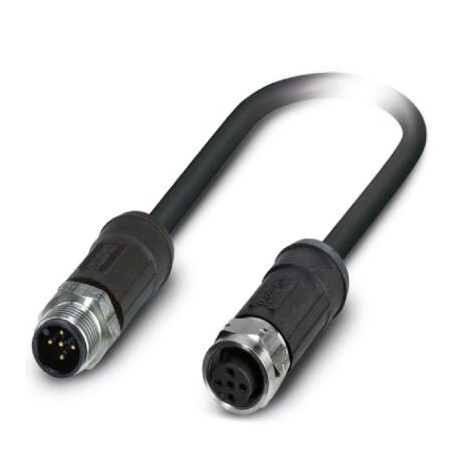

Sensor/actuator cable - SAC-5P-M12MS/1,0-28X/M12FS OD - 1057278 Sensor/actuator cable, 5-pole, halogen-free PE-X, greyish black RAL 7021, M12 straight male connector, encoding: A, to M12 straight connection female, coding: A, cable length: 1 m, for outdoor applications, with stainless steel knurling

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Sensor/actuator cable, 5-position, PE-X halogen-free, black-gray RAL 7021, Plug straight M12, A-coded, on Socket straight M12, A-coded, cable length: 1 m, for outdoor applications, with high-grade steel knurl

Key Commercial Data

Orderkey1057278
Packing unit1
GTIN4055626698687
Custom tariff number85444290

Dimensions

Length of cable1 m

General

Rated current at 40°C4 A
Rated voltage48 V AC
60 V DC
Number of positions5
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Protective circuit/componentunwired
Degree of pollution3
Insertion/withdrawal cycles≥ 100

Material

Flammability rating according to UL 94V0
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPP
Material of grip bodyPP
Material, knurlsStainless steel
Sealing materialFPM

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94V0

Cable

Cable typePE-X black
Cable type (abbreviation)28X
Cable abbreviationLi2X2X
Conductor cross section5x 0.5 mm²
AWG signal line20
Conductor structure signal line28x 0.15 mm
Core diameter including insulation1.6 mm ±0.5 mm
Thickness, insulationapprox. 0.3 mm (Core insulation)
Wire colorsBrown, white, blue, black, gray
Overall twist5 wires around filler to the core
Length of twist, overall twist68 mm
External sheath, colorblack-gray RAL 7021
Outer sheath thicknessapprox. 1.25 mm
External cable diameter D6.8 mm ±0.2 mm
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Number of bending cycles2000000
Minimum bending radius, drag chain applications10 x D
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Cable weight70 kg/km
Outer sheath, materialPE-X
Material, fillerPP yarn
Material conductor insulationPE-X
Conductor materialBare Cu litz wires
Insulation resistance≥ 100 MΩ*km (at 20 °C)
Conductor resistance≤ 39 Ω/m (at 20 °C)
Nominal voltage, cable≤ 300 V AC
Test voltage, cable≥ 3000 V AC (Spark test)
Special propertiesIrradiated
Flame resistanceAccording to DIN EN 60332-1-2
according to DIN EN 50266-2-5
according to IEC 60332-3-25 (bunched fire test)
Halogen-freein accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Resistance to oilAccording to DIN EN 60811-2-1, 168 h at 100°C
According to DIN EN 50306
Other resistanceResistance to fuels according to IEC 60811, 168 h at 70°C
UV resistant according to DIN VDE 0276-605
Ambient temperature (operation)-40 °C ... 105 °C (cable, fixed installation)
-15 °C ... 105 °C (cable, flexible installation)
20 °C ±5 °C (cable, drag chain applications)

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 4.027060306
eCl@ss 4.127060306
eCl@ss 5.027061801
eCl@ss 5.127061801
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311

ETIM

ETIM 2.0EC000830
ETIM 3.0EC001855
ETIM 4.0EC001855
ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855

UNSPSC

UNSPSC 6.0131251501
UNSPSC 7.090131251501
UNSPSC 1131251501
UNSPSC 12.0131251501
UNSPSC 13.231251501

ETIM for 1057278 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 5
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 1 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Cable type (EF000081) Multi-core
Vulcanize (EF004115) Yes
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -15 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
