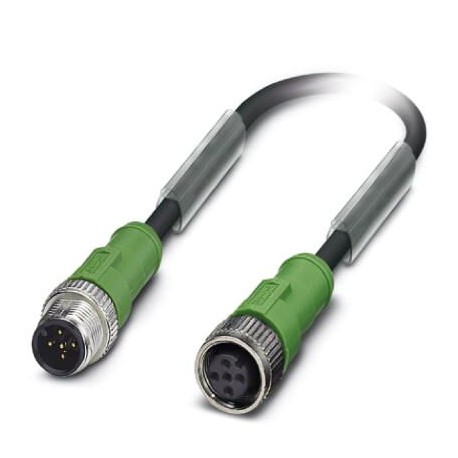

SAC-5P-M12MS/ 0,8-PUR/M12FS VA 1426356 PHOENIX CONTACT Cable for sensors/actuators
SAC-5P-M12MS/ 0,8-PUR/M12FS VA
1426356
PHOENIX CONTACT
100 Pcs.
Cable for sensors/actuators
Sensor/actuator cable, 5-pole, halogen-free PUR, greyish black RAL 7021, Straight connector M12, coding: A, to Straight female M12, coding: A, cable length: 0.8 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Cable, sensor-actuator, 5-pin, PUR without halogenated, black-grey RAL 7021, straight Male M12, A-coded, cable length: 0.8 m
Commercial data
| The code for the order | One million four hundred twenty six thousand three hundred fifty six |
|---|---|
| Pieces/pack. | 1 PCS |
| Sales key | BF1CDA - |
| The amount of minimum order | 100 PCS |
| GTIN | Four trillion fifty five billion six hundred twenty six million four hundred fifty nine thousand forty two |
| Weight per piece (package included) | 49,600 g |
| Number customs tariff | Eighty five million four hundred forty four thousand two hundred ninety |
Size
| Length. cable | 0.8 m |
|---|
General
| Rated current at 40 ℃ | 4 To |
|---|---|
| Rating voltage | 48 V AC |
| 60 V DC | |
| N. of poles | Five |
| Insulation resistance | ≥ 100 MΩ |
| Encoding | A - standard |
| Signalling status of | No |
| Overvoltage category | II |
| Pollution degree | Three |
| Number of operating cycles, | ≥ 100 |
Material
| Class behaviour according to UL 94 | HB |
|---|---|
| Contact material | CuSn |
| Material surface contacts | Ni/Au |
| Insert material latch | TPU GF |
| Material handles | TPU, hardly inflammable, self-extinguishing |
| Nut material | Stainless steel |
| Material gasket | NBR |
Regulations and requirements
| Class behaviour according to UL 94 | HB |
|---|
Cable
| Cable type | EVEN without halogenated black |
|---|---|
| Cable type (abbreviation) | WHILE |
| Abbreviation cables | Li9Y11Y |
| UL AWM Style | 20549 / 10493 (80 °C / 300 V) |
| Conductor cross section | 5x 0.34 mm2 (signal Line) |
| Signal line AWG | Twenty two |
| Tree conductor signal line | 42x 0.10 mm |
| Wire diameter including insulation | 1.27 mm ±0.02 mm (signal Line) |
| Insulation wall thickness | ≥ 0.21 mm |
| Color wire | black, brown, blue, white, yellow-green |
| Lay the entire | 5 wires around filler to the soul |
| External sheath, color | grey-black RAL 7021 |
| Wall thickness outer jacket | ca. 0.7 mm |
| Cable outer diameter D | 5 mm ±0.15 mm |
| Minimum bend radius, fixed | 25 mm |
| Minimum bend radius, mobile | 50 mm |
| The number of cycles of bending | Four million |
| Bend radius | 50 mm |
| Positioning movement | 10 m |
| Positioning speed | 3 m/s |
| Acceleration | 10 m/s2 |
| The weight of the cable | 35 kg/km |
| Outer sheath, material | WHILE |
| Material insulation wire | PP |
| The conductive material | Cu wire bare |
| Insulation resistance | ≥ 16 GΩ*km (at 20 °C) |
| resistance of the conductor | max. 58 Ω/km (at 20 °C) |
| Rated voltage of cable | 300 V |
| Test voltage cable | 3000 V |
| Special features | drag chain |
| silicone-free | |
| without substances impregnated with varnish | |
| flexible | |
| Flame resistance | according to UL-Style 20549 |
| The absence of halogens | according to DIN VDE 0472 Part 815 |
| Oil resistance | in accordance with DIN EN 60811-2-1 |
| The other resistance | Excellent resistance against acids, alkaline solutions and solvents |
| Resistance to hydrolysis and microbes | |
| sea-water resistant | |
| UV-resistant in accordance with DIN EN ISO 4892-2-A | |
| Ambient temperature (operation) | -40 °C ... 80 °C (cable, fixed installation) |
| -25 °C ... 80 °C (cable, mobile installation) |
Environmental Product Compliance
| China RoHS | Period for proper use: unlimited = EFUP-and |
|---|---|
| Any hazardous substances above the threshold values |
Rankings
eCl@ss
| eCl@ss 6.0 | Twenty seven million two hundred seventy nine thousand two hundred |
|---|---|
| eCl@ss 7.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| eCl@ss 9.0 | Twenty seven million sixty thousand three hundred eleven |
ETIM
| ETIM 5.0 | EC001855 |
|---|---|
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 5 |
| Type of electrical connection, field-sided (EF005525) | M12 |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | M12 |
| Type of plug-in contact, box-sided (EF008386) | Female (bus) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 0.8 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | No |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | CuSn |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -25 °C |
| Rated current In (EF008250) | 4 A |
| Rated voltage (EF000228) | 48 V |
| Degree of protection (IP) (EF005474) | IP65 |
