SAC-5P-M12MS/0,77-28X/M12FS OD 1042182 PHOENIX CONTACT Sensor/actuator cable

SAC-5P-M12MS/0,77-28X/M12FS OD

1042182

PHOENIX CONTACT

50 Pcs.

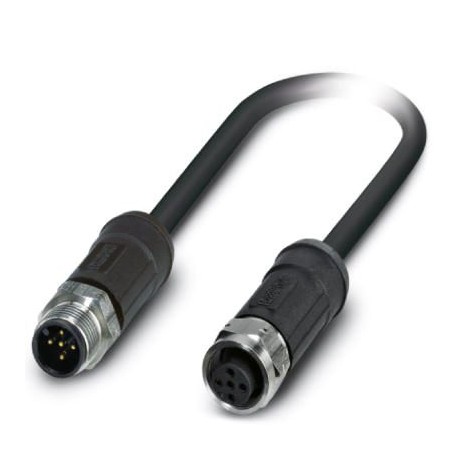

Sensor/actuator cable Sensor/actuator cable, 5-pole, halogen-free PE-X, greyish black RAL 7021, M12 straight male connector, coding: coded A, to M12 straight connection female, coding: coded A, cable length: 0.77 m, for outdoor applications, with stainless steel knurling

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1042182
Packing unit1
GTIN4055626601151
Custom tariff number85444290

Dimensions

Length of cable0.77 m

Ambient conditions

Ambient temperature (operation)-40 °C ... 105 °C (Plug / socket)
-40 °C ... 85 °C (On sudden changes in temperature (according to IEC 60512-11-4))

General

Rated current at 40°C4 A
Rated voltage48 V AC
60 V DC
Number of positions5
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Protective circuit/componentunwired
Degree of pollution3
Insertion/withdrawal cycles≥ 100

Material

Flammability rating according to UL 94V0
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPP
Material of grip bodyPP
Material, knurlsStainless steel
Sealing materialFPM

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94V0

Cable

Cable typePE-X black
Cable type (abbreviation)28X
Cable abbreviationLi2X2X
Conductor cross section5x 0.5 mm²
AWG signal line20
Conductor structure signal line28x 0.15 mm
Core diameter including insulation1.6 mm ±0.5 mm
Thickness, insulationapprox. 0.3 mm (Core insulation)
Wire colorsBrown, white, blue, black, gray
Overall twist5 wires around filler to the core
Length of twist, overall twist68 mm
External sheath, colorblack-gray RAL 7021
Outer sheath thicknessapprox. 1.25 mm
External cable diameter D6.8 mm ±0.2 mm
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Number of bending cycles2000000
Minimum bending radius, drag chain applications10 x D
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Cable weight70 kg/km
Outer sheath, materialPE-X
Material, fillerPP yarn
Material conductor insulationPE-X
Conductor materialBare Cu litz wires
Insulation resistance≥ 100 MΩ*km (at 20 °C)
Conductor resistance≤ 39 Ω/m (at 20 °C)
Nominal voltage, cable≤ 300 V AC
Test voltage, cable≥ 3000 V AC (Spark test)
Special propertiesIrradiated
Flame resistanceAccording to DIN EN 60332-1-2
according to DIN EN 50266-2-5
according to IEC 60332-3-25 (bunched fire test)
Halogen-freein accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Resistance to oilAccording to DIN EN 60811-2-1, 168 h at 100°C
According to DIN EN 50306
Other resistanceResistance to fuels according to IEC 60811, 168 h at 70°C
UV resistant according to DIN VDE 0276-605
Ambient temperature (operation)-40 °C ... 105 °C (cable, fixed installation)
-15 °C ... 105 °C (cable, flexible installation)
20 °C ±5 °C (cable, drag chain applications)

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
