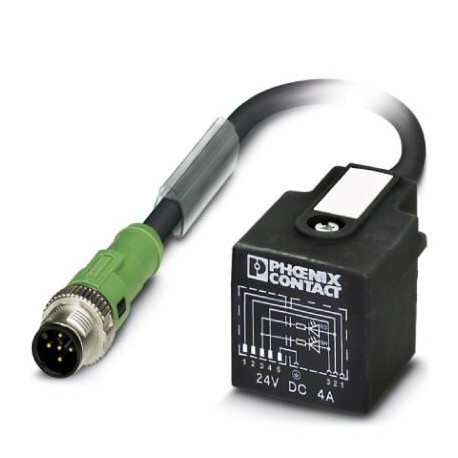

Sensor/actuator cable - SAC-5P-M12MS/0,6-PUR/AD-2L - 1439573 Sensor/actuator cable, 5-pole halogen-free, M12 straight connector, coding: A, with 2 LEDs, to AD valve connectors (Druckschalter), with 2 LEDs, cable length: 0.6 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Sensor/actuator cable, 5-position, PUR halogen-free, black-gray RAL 7021, Plug straight M12, A-coded, on Valve connector AD (pressure switch), with 2 LEDs, cable length: 0.6 m

Key Commercial Data

Orderkey1439573
Packing unit1
GTIN4046356489423
Custom tariff number85444290

Dimensions

Length of cable0.6 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)
-20 °C ... 85 °C (valve plug)
Degree of protectionIP65
IP67

General

Rated current at 40°C4 A
Rated voltage24 V AC
24 V DC
Number of positions5
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Valve connector EN 175301-803
Status display2 LEDs
Protective circuit/componentunwired
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles≥ 100 (M12 connector)
Torque0.6 Nm (Valve connector)
0.4 Nm (M12 connector)

Material

Flammability rating according to UL 94V0
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Valve plug contact materialCuSn
Valve plug contact surface materialAg
Valve plug contact insert materialPBT
Material housing valve plugPBT
Material, knurlsZinc die-cast, nickel-plated
Sealing materialTPU (Seal molded)

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Standard designationValve connector
Standards/regulationsEN 175301-803
Flammability rating according to UL 94V0

Cable

Cable typePUR halogen-free black
Cable type (abbreviation)PUR
Cable abbreviationLi9Y11Y-HF
UL AWM style20549
Conductor cross section5x 0.5 mm²
AWG signal line20
Conductor structure signal line28x 0.15 mm
Core diameter including insulation1.5 mm ±0.05 mm (Signal line)
Wire colorsBlack 1, black 2, black 3, black 4, green/yellow
Overall twist5 cores, twisted
External sheath, colorblack-gray RAL 7021
External cable diameter D5.3 mm ±0.02 mm
Smallest bending radius, fixed installation26.5 mm
Smallest bending radius, movable installation53 mm
Number of bending cycles15000000
Bending radius50 mm
Traversing path0.9 m
Traversing rate5 m/s
Acceleration30 m/s²
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistancemin. 20 MΩ*km
Conductor resistance39 Ω/km (at 20 °C)
Nominal voltage, cable≤ 300 V
Test voltage, cable≥ 1200 V
Special propertiesFlexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or varnish
Flame resistancein accordance with DIN UL-Style 20549
Halogen-freein accordance with DIN VDE 0472 part 815
Resistance to oilin accordance with DIN EN 60811-2-1
Other resistanceHighly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant
largely oil-resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 10.0.127060312
eCl@ss 4.027060306
eCl@ss 4.127060306
eCl@ss 5.027061801
eCl@ss 5.127061800
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060312

ETIM

ETIM 3.0EC001855
ETIM 4.0EC001855
ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855

UNSPSC

UNSPSC 6.0131251501
UNSPSC 7.090131251501
UNSPSC 1131251501
UNSPSC 12.0131251501
UNSPSC 13.231251501

ETIM for 1439573 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 5
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 0.6 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) Yes
Screened (EF000881) No
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -20 °C
Rated voltage (EF000228) 24 V
Degree of protection (IP) (EF005474) IP65
