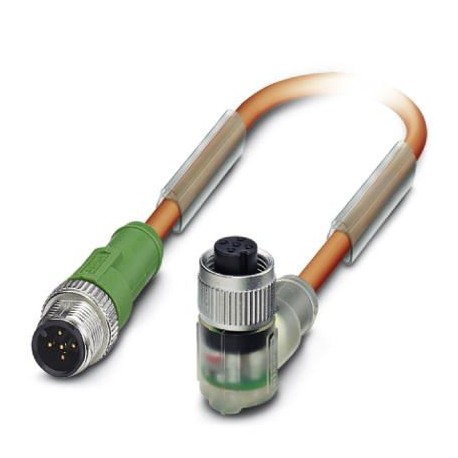

SAC-5P-M12MS/0,3-PUR/M12FR3LVW 1501524 PHOENIX CONTACT Sensor/actuator cable
SAC-5P-M12MS/0,3-PUR/M12FR3LVW
1501524
PHOENIX CONTACT
5 Pcs.
Sensor/actuator cable
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1501524 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4017918604233 |
| Weight per Piece (excluding packing) | 36.260 g |
| Custom tariff number | 85444290 |
| Country of origin | PL (Poland) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 90 °C (Plug / socket) |
|---|---|
| Degree of protection | IP65 |
| IP67 | |
| IP68 |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 24 V |
| 24 V DC | |
| Number of positions | 5 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Status display | 3 LEDs |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Insertion/withdrawal cycles | ≥ 100 |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR |
Cable
| Cable type | PUR irradiated halogen-free orange |
|---|---|
| Cable type (abbreviation) | 150 |
| Cable abbreviation | D12YSL11X-JB |
| Conductor cross section | 4x 0.34 mm² (Signal line) |
| 1x 0.5 mm² (PE connection) | |
| AWG signal line | 22 |
| AWG power supply | 20 |
| Conductor structure signal line | 42x 0.10 mm |
| Conductor structure, voltage supply | 24x 0.15 mm |
| Wire colors | Brown, blue, black, white, green/yellow |
| Overall twist | 5 cores, twisted |
| External sheath, color | orange RAL 2003 |
| External cable diameter D | 5.2 mm ±0.2 mm |
| Smallest bending radius, fixed installation | min. 20 mm |
| Smallest bending radius, movable installation | min. 30 mm |
| Number of bending cycles | 5000000 |
| Bending radius | 52 mm |
| Traversing path | 10 m |
| Traversing rate | 3 m/s |
| Outer sheath, material | PUR |
| Material conductor insulation | PE |
| Conductor material | Bare Cu litz wires |
| Conductor resistance | ≤ 57.5 Ω/km (with 0.34 mm² conductor cross section) |
| ≤ 39 Ω/km (with 0.5 mm² conductor cross section) | |
| Nominal voltage, cable | 250 V (AC) |
| Test voltage, cable | 2000 V (50 Hz, 5 minutes) |
| Special properties | Silicone-free |
| Irradiated | |
| Flame resistance | DIN VDE 0472 part 804, test type B |
| Halogen-free | The cable is halogen-free |
| Other resistance | hydrolysis and microbe resistant |
| UV resistant | |
| Resistant to welding splashes | |
| Ambient temperature (operation) | -50 °C ... 105 °C (cable, fixed installation) |
| -40 °C ... 105 °C (cable, flexible installation) |
