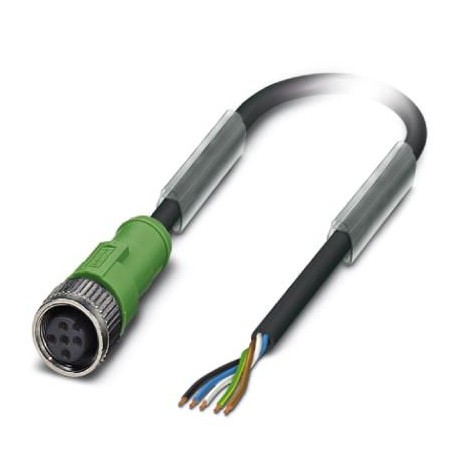

SAC-5P-M12FS/ 8,0-PUR/M12FS VW 1502358 PHOENIX CONTACT Sensor/actuator cable
SAC-5P-M12FS/ 8,0-PUR/M12FS VW
1502358
PHOENIX CONTACT
1 Pcs.
Sensor/actuator cable
Sensor/actuator cable, 5-pole, halogen-free PUR, irradiation cross-linked, orange RAL 2003, Straight female M12, coding: A, a Straight female M12, coding: A, cable length: 8 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1502358 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4017918857677 |
| Weight per Piece (excluding packing) | 328.500 g |
| Custom tariff number | 85444290 |
| Country of origin | IN (India) |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 48 V AC |
| 60 V DC | |
| Number of positions | 5 |
| Coding | A - standard |
| Insertion/withdrawal cycles | ≥ 100 |
Cable
| Cable type | PUR irradiated halogen-free orange |
|---|---|
| Cable type (abbreviation) | 150 |
| Cable abbreviation | D12YSL11X-JB |
| Conductor cross section | 4x 0.34 mm² (Signal line) |
| 1x 0.5 mm² (PE connection) | |
| AWG signal line | 22 |
| AWG power supply | 20 |
| Conductor structure signal line | 42x 0.10 mm |
| Conductor structure, voltage supply | 24x 0.15 mm |
| Wire colors | Brown, blue, black, white, green/yellow |
| Overall twist | 5 cores, twisted |
| External sheath, color | orange RAL 2003 |
| External cable diameter D | 5.2 mm ±0.2 mm |
| Smallest bending radius, fixed installation | min. 20 mm |
| Smallest bending radius, movable installation | min. 30 mm |
| Number of bending cycles | 5000000 |
| Bending radius | 52 mm |
| Traversing path | 10 m |
| Traversing rate | 3 m/s |
| Outer sheath, material | PUR |
| Material conductor insulation | PE |
| Conductor material | Bare Cu litz wires |
| Conductor resistance | ≤ 57.5 Ω/km (with 0.34 mm² conductor cross section) |
| ≤ 39 Ω/km (with 0.5 mm² conductor cross section) | |
| Nominal voltage, cable | 250 V (AC) |
| Test voltage, cable | 2000 V (50 Hz, 5 minutes) |
| Special properties | Silicone-free |
| Irradiated | |
| Flame resistance | DIN VDE 0472 part 804, test type B |
| Halogen-free | The cable is halogen-free |
| Other resistance | hydrolysis and microbe resistant |
| UV resistant | |
| Resistant to welding splashes | |
| Ambient temperature (operation) | -50 °C ... 105 °C (cable, fixed installation) |
| -40 °C ... 105 °C (cable, flexible installation) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027060306eCl@ss 4.127060306eCl@ss 5.027061801eCl@ss 5.127061800eCl@ss 6.027279200eCl@ss 7.027279218eCl@ss 8.027279218eCl@ss 9.027060311
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 5 |
| Type of electrical connection, field-sided (EF005525) | M12 |
| Type of plug-in contact, field sided (EF006269) | Female (bus) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | M12 |
| Type of plug-in contact, box-sided (EF008386) | Female (bus) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 8 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | No |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | CuSn |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -50 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -40 °C |
| Rated current In (EF008250) | 4 A |
| Rated voltage (EF000228) | 48 V |
