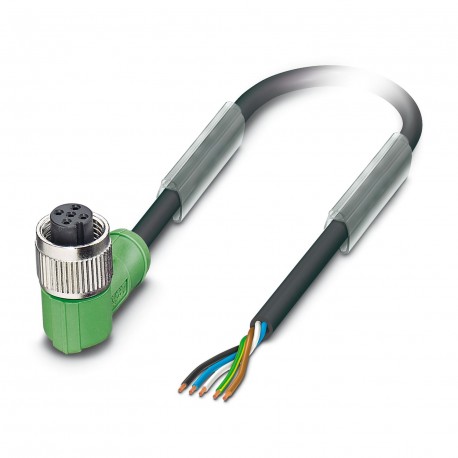

SAC-5P- 6,0-186/M12FR 1570775 PHOENIX CONTACT Sensor/actuator cable

SAC-5P-6,0-186/M12FR

1570775

PHOENIX CONTACT

50 Pcs.

Sensor/actuator cable Sensor/actuator cable, 5-pole, PUR, greyish black RAL 7021, free cable end, to Angled connection female M12, coding: A, cable length: 6 m Sensor/actuator cable, 5-position, PUR, black-gray RAL 7021, free cable end, on Socket angled M12, coding: A, cable length: 6 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeSensor/actuator cable
Number of positions5
No. of cable outlets1
Shieldedno
CodingA
Insulation characteristics
Overvoltage categoryII
Degree of pollution3
Material specifications
Flammability rating according to UL 94HB
Seal materialNBR
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material for screw connectionZinc die-cast, nickel-plated
Electrical properties
Insulation resistance≥ 100 MΩ
Nominal voltage UN48 V AC
60 V DC
Nominal current IN4 A
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 100
Signaling
Status displayno
Status display presentNo
Connector
Connection 1
Typefree cable end
Connection 2
TypeSocket angled M12
Number of positions5
Coding typeA
Cable/line
Cable length6 m
PUR POWER 0.75 mm² black [186]
Dimensional drawingfatlnxhuzu.jpg
Cable weight67 kg/km
Number of positions5
Shieldedno
Cable typePUR POWER 0.75 mm² black [186]
Conductor structure signal line42x 0.15 mm
AWG signal line18
Conductor cross section5x 0.75 mm² (power line)
Wire diameter incl. insulation1.7 mm ±0.05 mm
External cable diameter6.30 mm ±0.2 mm
Outer sheath, materialPUR
External sheath, colorblack-gray RAL 7021
Conductor materialBare Cu litz wires
Material wire insulationPVC
Single wire, colorbrown, white, blue, black, gray
Thickness, insulation≥ 0.23 mm (Core insulation)
≥ 0.76 mm (Outer cable sheath)
Overall twist5 wires around filler to the core
Max. conductor resistancemax. 26 Ω/km (at 20 °C)
Insulation resistance≥ 1 MΩ*km (at 20 °C)
Nominal voltage, cable≤ 300 V
Test voltage≥ 3000 V
Smallest bending radius, movable installation63 mm
Dynamic load capacity (bending)Max. bending cycles: 2000000, Bending radius: 63 mm, Traversing path: 5 m, Traversing rate: 3 m/s, Acceleration: 5 m/s²
Flame resistancein accordance with DIN UL-Style 20549
Resistance to oilin accordance with DIN EN 60811-2-1
Ambient temperature (operation)-25 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (Cable, flexible installation)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
IP67
IP68
Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)
-25 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (Cable, flexible installation)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
