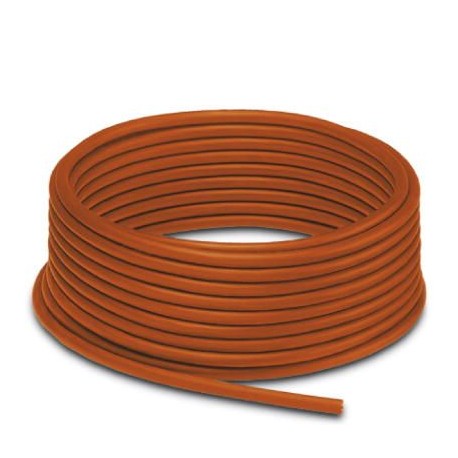

PHOENIX CONTACT SAC-5P-100,0-150/0,34+0,5 SAC-5P-100,0-150/0,34+0,5 1501760 PHOENIX CONTACT Sensor/actuator cable

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

SAC-5P-100,0-150/0,34+0,5 1501760 PHOENIX CONTACT Sensor/actuator cable

Name: SAC-5P-100,0-150/0,34+0,5 1501760 PHOENIX CONTACT Sensor/actuator cable
Brand: PHOENIX CONTACT
SKU: 1501760

Reference: SAC-5P-100,0-150/0,34+0,5

Code: 1501760

Manufacturer: PHOENIX CONTACT

Units per package: 1 Pcs.

Description:

Sensor/actuator cable By meters, Cable ring, halogen-free PUR, orange RAL 2003, 5-conductors, color single conductors: black, brown, blue, white, yellow/green, cable length: 100 m, cross-linked by irradiation

Categories:
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

More info

▲

Key Commercial Data

Orderkey	1501760
Packing unit	1 pc
Note	Made to Order (non-returnable)
GTIN	4017918813475
Weight per Piece (excluding packing)	3,905.000 g
Custom tariff number	85444995
Country of origin	DE (Germany)

Dimensions

Length of cable	100 m

General

Number of positions	5

Cable

Cable type	PUR irradiated halogen-free orange
Cable type (abbreviation)	150
Cable abbreviation	D12YSL11X-JB
Conductor cross section	4x 0.34 mm² (Signal line)
	1x 0.5 mm² (PE connection)
AWG signal line	22
AWG power supply	20
Conductor structure signal line	42x 0.10 mm
Conductor structure, voltage supply	24x 0.15 mm
Wire colors	Brown, blue, black, white, green/yellow
Overall twist	5 cores, twisted
External sheath, color	orange RAL 2003
External cable diameter D	5.2 mm ±0.2 mm
Smallest bending radius, fixed installation	min. 20 mm
Smallest bending radius, movable installation	min. 30 mm
Number of bending cycles	5000000
Bending radius	52 mm
Traversing path	10 m
Traversing rate	3 m/s
Outer sheath, material	PUR
Material conductor insulation	PE
Conductor material	Bare Cu litz wires
Conductor resistance	≤ 57.5 Ω/km (with 0.34 mm² conductor cross section)
	≤ 39 Ω/km (with 0.5 mm² conductor cross section)
Nominal voltage, cable	250 V (AC)
Test voltage, cable	2000 V (50 Hz, 5 minutes)
Special properties	Silicone-free
	Irradiated
Flame resistance	DIN VDE 0472 part 804, test type B
Halogen-free	The cable is halogen-free
Other resistance	hydrolysis and microbe resistant
	UV resistant
	Resistant to welding splashes
Ambient temperature (operation)	-50 °C ... 105 °C (cable, fixed installation)
	-40 °C ... 105 °C (cable, flexible installation)
