SAC-5P-10,0-PVC/M12FR SH VA

1402564

PHOENIX CONTACT

50 Pcs.

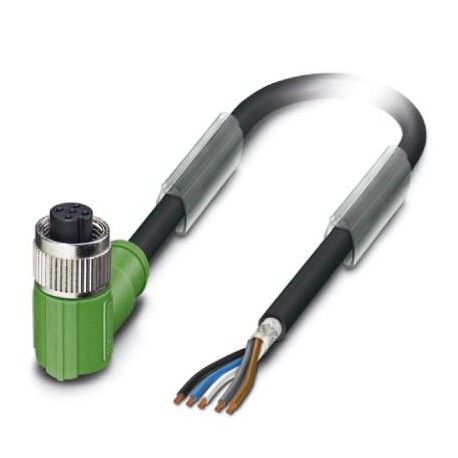

Sensor/actuator cable - SAC-5P-10,0-PVC/M12FR SH VA - 1402564 Sensor/actuator cable, 5-pole, PVC, black RAL 9005, shielded, free cable end, to Elbowed connection female M12, coding: A, cable length: 10 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Sensor/actuator cable, 5-position, PVC, black RAL 9005, shielded, free cable end, on Socket angled M12, A-coded, cable length: 10 m

Key Commercial Data

Orderkey1402564
Packing unit1
GTIN4046356623759
Custom tariff number85444290

Dimensions

Length of cable10 m

Ambient conditions

Degree of protectionIP65
IP67

General

Rated current at 40°C4 A
Rated voltage48 V AC
60 V DC
Number of positions5
Insulation resistance≥ 100 MΩ
CodingA - standard
Status displayNo
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles≥ 100

Material

Flammability rating according to UL 94HB
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR

Standards and Regulations

Flammability rating according to UL 94HB

Cable

Cable typePVC black
Cable type (abbreviation)PVC
Conductor cross section5x 0.34 mm² (Signal line)
AWG signal line22
Conductor structure signal line42x 0.10 mm
Core diameter including insulation1.35 mm ±0.02 mm
Thickness, insulation≥ 0.23 mm (Core insulation)
≥ 0.76 mm (Outer cable sheath)
Wire colorsBrown, white, blue, black, gray
Overall twist5 wires around filler to the core
ShieldingTinned copper braided shield
Optical shield covering85 %
External sheath, colorblack RAL 9005
External cable diameter D5.9 mm ±0.2 mm
Cable weight55 kg/km
Outer sheath, materialPVC
Material, fillerPVC
Material conductor insulationPVC
Conductor materialBare Cu litz wires
Insulation resistance≥ 10 MΩ*km (at 20 °C)
Conductor resistance≤ 58 Ω/km (at 20 °C)
Nominal voltage, cable≤ 300 V
Test voltage, cable≥ 3000 V
Flame resistanceAs per UL-Style 2464
Ambient temperature (operation)-25 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 4.027060306
eCl@ss 4.127060306
eCl@ss 5.027061801
eCl@ss 5.127061800
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311

ETIM

ETIM 4.0EC001855
ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855

UNSPSC

UNSPSC 6.0131251501
UNSPSC 7.090131251501
UNSPSC 1131251501
UNSPSC 12.0131251501
UNSPSC 13.231251501

ETIM for 1402564 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 5
Type of electrical connection, field-sided (EF005525) Other
Positioning cable feed, field-sided (EF005928) Other
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Angled
Cable length (EF000536) 10 m
Material of cable sheath (EF004136) Polyvinyl chloride (PVC)
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -25 °C
Permitted cable outer temperature during assembling/handling (EF001685) -5 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
