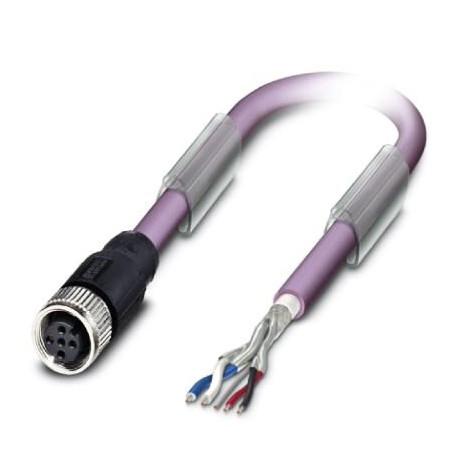

Bus system cable - SAC-5P-10,0-927/M12FS VA - 1402958 Bus System Cable, CANopen®, DeviceNet™, 5-pole, shielded, free cable end, to Straight female M12, encoding: A, cable length: 10 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Bus system cable, CANopen®, DeviceNet™, 5-position, PVC, black, shielded, free cable end, on Socket straight M12, A-coded, cable length: 10 m

Key Commercial Data

Orderkey1402958
Packing unit1
GTIN4046356637473
Custom tariff number85444290

Dimensions

Length of cable10 m

General

Rated current at 40°C4 A
Rated voltage48 V AC
60 V DC
Number of positions5
Insulation resistance≥ 100 MΩ
CodingA - standard
Signal type/categoryCANopen®
DeviceNet™
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles≥ 100

Material

Flammability rating according to UL 94HB
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsStainless steel
Sealing materialNBR

Standards and Regulations

Flammability rating according to UL 94HB

Cable

Cable typeDeviceNet™
Cable type (abbreviation)927
UL AWM style2464 (80°C/300 V)
Conductor cross section2x 0.34 mm² (Signal line)
2x 0.34 mm² (Power supply)
1x 0.38 mm² (Drain wire)
AWG signal line22
AWG power supply22
Conductor structure signal line44x 0.10 mm
Conductor structure, voltage supply44x 0.10 mm
Core diameter including insulation2.55 mm (Signal line)
1.37 mm (Power supply)
Thickness, insulation≥ 0.3 mm (Wire insulation power supply)
Wire colorsRed-black, blue-white
Twisted pairs2 cores to the pair
Type of pair shieldingAluminum-lined polyester foil
Overall twist2 pairs with filler elements, around a drain wire in the center to the core
ShieldingTinned copper braided shield
Optical shield covering85 %
External sheath, colorblack
Outer sheath thickness≥ 1 mm
External cable diameter D8.3 mm ±0,3 mm
Minimum bending radius, fixed installation4 x D
Minimum bending radius, flexible installation8 x D
Cable weight83 kg/km
Outer sheath, materialPVC
Material conductor insulationFoamed PP (Signal line)
PVC (Power supply)
Conductor materialTin-plated Cu litz wires
Insulation resistance≥ 20 MΩ*km
Conductor resistance≤ 56 Ω/km
Working capacitanceapprox. 39.8 nF (Signal line, Core-Core)
≤ 4000 pF (Signal line, Core-Shield)
Wave impedance120 Ω ±12 Ω (f = 1 MHz)
Signal runtime4.46 ns/m
Nominal voltage, cable≤ 300 V
Test voltage, cable2000 V (50 Hz, 1 min.)
Flame resistancein acc. with UL 1581, section 1061
Ambient temperature (operation)-30 °C ... 80 °C

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 4.027060306
eCl@ss 4.127060306
eCl@ss 5.027061801
eCl@ss 5.127061800
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311

ETIM

ETIM 4.0EC001855
ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855

UNSPSC

UNSPSC 6.0126121616
UNSPSC 7.090126121616
UNSPSC 1126121604
UNSPSC 12.0131251501
UNSPSC 13.231251501

ETIM for 1402958 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 5
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Female (bus)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) Other
Positioning cable feed, box-sided (EF005927) Other
Cable length (EF000536) 10 m
Material of cable sheath (EF004136) Polyvinyl chloride (PVC)
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Black
With LED indication (EF005950) No
Screened (EF000881) No
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -30 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65
