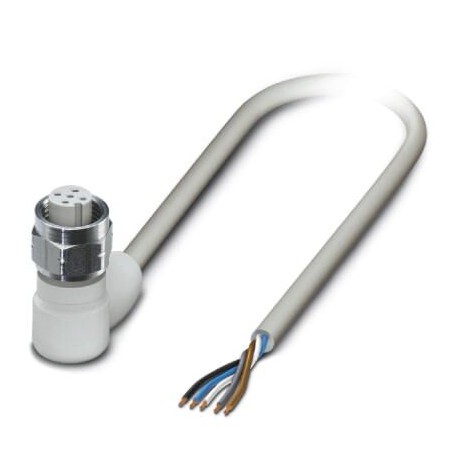

Sensor/actuator cable - SAC-5P-10,0-500/M12FR FB - 1421005 Sensor/Actuator Cable, 5-pole, free cable end, to Elbowed Female M12, coding: A, cable length: 10 m, with stainless steel knurling

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Sensor/actuator cable, 5-position, PVC, gray RAL 7001, free cable end, on Socket angled M12, A-coded, cable length: 10 m, with high-grade steel knurl

Key Commercial Data

Orderkey1421005
Packing unit1
GTIN4055626250359
Custom tariff number85444290

Dimensions

Length of cable10 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)
Degree of protectionIP65
IP67
IP68
IP69K

General

Rated current at 40°C4 A
Rated voltage48 V AC
60 V DC
Number of positions5
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles≥ 100

Material

Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPP
Material of grip bodyPP
Material, knurlsStainless steel 1.4404

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101

Cable

Cable typePVC gray
Cable type (abbreviation)PVC
Cable abbreviationLiYY
UL AWM style2464 / 1729 (80°C/300 V)
Conductor cross section5x 0.34 mm² (Signal line)
AWG signal line22
Conductor structure signal line19x 0.15 mm
Core diameter including insulation1.26 mm ±0.05 mm
Thickness, insulation≥ 0.23 mm (Core insulation)
Wire colorsbrown, white, blue, black, green-yellow
Overall twist5 wires around filler to the core
External sheath, colorgray RAL 7001
Outer sheath thickness≥ 0.76 mm
External cable diameter D5 mm ±0.15 mm
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Cable weight51 kg/km
Outer sheath, materialPVC
Material conductor insulationPVC
Conductor materialBare Cu litz wires
Insulation resistance≥ 200 MΩ*km (at 20 °C)
Conductor resistancemax. 57 Ω/km (at 20 °C)
Nominal voltage, cable≤ 300 V
Test voltage, cable≥ 3000 V
Flame resistanceAs per UL-Style 2464
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)

Classifications

eCl@ss

eCl@ss 8.027279218
eCl@ss 9.027060311

ETIM

ETIM 5.0EC001855
ETIM 6.0EC001855

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
