PHOENIX CONTACT SAC-5P- 0,5-BF145/M12FS SH NC SAC-5P- 0,5-BF145/M12FS SH NC 1408115 PHOENIX CONTACT Sensor/actuator cable, 5-pos., free cable end to strai.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-5P- 0,5-BF145/M12FS SH NC 1408115 PHOENIX CONTACT Sensor/actuator cable, 5-pos., free cable end to strai..

SAC-5P- 0,5-BF145/M12FS SH NC

1408115

PHOENIX CONTACT

50 Pcs.

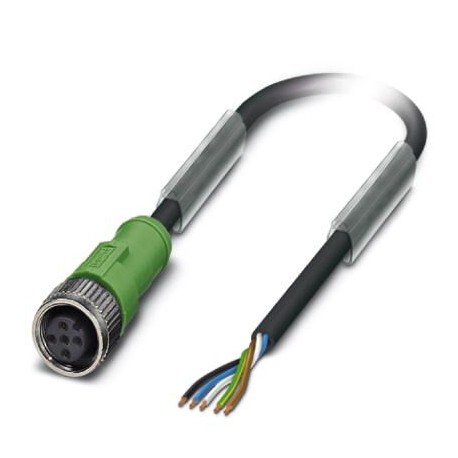

Sensor/actuator cable, 5-pos., free cable end to straight M12 socket, A-coded, cable length: 5 m Sensor/actuator cable, 5 poles, free cable end, to M12 straight connection female, codif. A, cable length: 5 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1408115
Packing unit1
GTIN4046356791229
Custom tariff number85444290

Drawings

Dimensional drawing

Dimensional drawing
M12 x 1 socket, straight

Circuit diagram

Circuit diagram
Contact assignment of the M12 socket

Schematic diagram

Schematic diagram
Pin assignment M12 socket, 5-pos., A-coded, socket side view

Back to top

Dimensions

Length of cable0.5 m
Back to top

Ambient conditions

Degree of protectionIP65
IP67
Back to top

General

Rated voltage48 V AC
60 V DC
Number of positions5
Insulation resistance≥ 100 MΩ
CodingA - standard
Status displayNo
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles≥ 100
Back to top

Cable

Cable typePOC irradiated halogen-free black
Cable type (abbreviation)BF 145
Conductor cross section5x 0.5 mm²
AWG signal line20
Core diameter including insulation1.9 mm
Wire colorsblack 1, black 2, black 3, black 4, black 5
Overall twist5 wires around filler to the core
ShieldingTinned copper braided shield
External sheath, colorblack RAL 9005
External cable diameter D7.3 mm
Minimum bending radius, fixed installation4 x D
Minimum bending radius, flexible installation12 x D
Number of bending cycles2000000
Minimum bending radius, drag chain applications10 x D
Traversing path5 m
Traversing rate4 m/s
Acceleration5 m/s²
Cable weight86 kg/km
Outer sheath, materialPOC
Material conductor insulationPOC
Conductor materialTin-plated Cu litz wires
Nominal voltage, cable300 V
Test voltage Core/Core3500 V
Test voltage Core/Shield2500 V
Special propertiesIrradiated
Flame resistanceIEC 60332-1
According to DIN EN 50265-2-1
Halogen-freeaccording to IEC 60754-1
in accordance with DIN EN 50267-2-1
Other resistanceGood resistance to aggressive media
Concentration of fumesin accordance with IEC 61034
EN 50268-2
Ambient temperature (operation)-55 °C ... 145 °C (cable, fixed installation)
-35 °C ... 120 °C (cable, flexible installation)
Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 4.027060300
eCl@ss 4.127060300
eCl@ss 5.027061800
eCl@ss 5.127061800
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311
Back to top

ETIM

ETIM 3.0EC001855
ETIM 4.0EC001855
ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855
Back to top

UNSPSC

UNSPSC 6.0131251501
UNSPSC 7.090131251501
UNSPSC 1131251501
UNSPSC 12.0131251501
UNSPSC 13.231251501
UNSPSC 19.031251501
UNSPSC 20.031251501
UNSPSC 21.031251501
Back to top

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
