View larger
Images are for illustrative purposes only. Please refer to data sheet for details

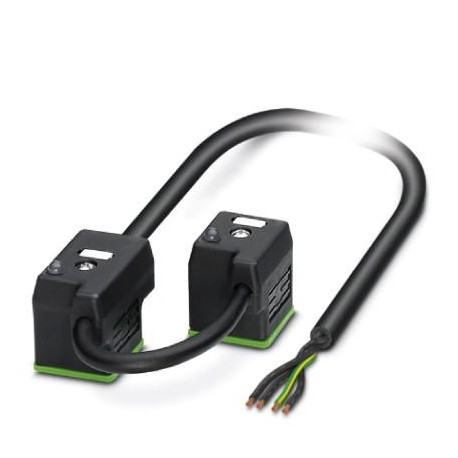

SAC-4P1,5/A1LSV/0,15-PVC/A1LSV 1400330 PHOENIX CONTACT Sensor/actuator cable
SAC-4P1,5/A1LSV/0,15-PVC/A1LSV
1400330
PHOENIX CONTACT
100 Pcs.
Sensor/actuator cable
Sensor/Actuator Cable, 4-pole, free cable end, to Valve Connectors A, with 1 LED, connected to Varistor and Valve Connectors A, with 1 LED, connected to Varistor, cable length: 1.5 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1400330 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 100 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356484800 |
| Weight per Piece (excluding packing) | 170.400 g |
| Custom tariff number | 85444290 |
| Country of origin | PL (Poland) |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 24 V AC |
| 24 V DC | |
| Number of positions | 4 |
| Insulation resistance | ≥ 100 MΩ |
| Status display | 1 LED |
| Protective circuit/component | Varistor |
| Overvoltage category | II |
| Degree of pollution | 3 |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Valve plug contact material | CuSn |
| Valve plug contact surface material | Ag |
| Valve plug contact insert material | PBT |
| Material housing valve plug | PBT |
| Sealing material | TPU (Flat gasket valve plug) |
Classifications
eCl@ss 4.027060306eCl@ss 4.127060306eCl@ss 5.027061801eCl@ss 5.127061800eCl@ss 6.027279200eCl@ss 7.027279218eCl@ss 8.027279218eCl@ss 9.027060311
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
| Type of electrical connection, field-sided (EF005525) | Other |
| Positioning cable feed, field-sided (EF005928) | Other |
| Type of electrical connection, box-sided (EF005524) | Other |
| Positioning cable feed, box-sided (EF005927) | Other |
| Cable length (EF000536) | 1.5 m |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Black |
| With LED indication (EF005950) | Yes |
| Screened (EF000881) | No |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | CuSn |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -5 °C |
| Rated voltage (EF000228) | 24 V |
| Degree of protection (IP) (EF005474) | IP67 |
