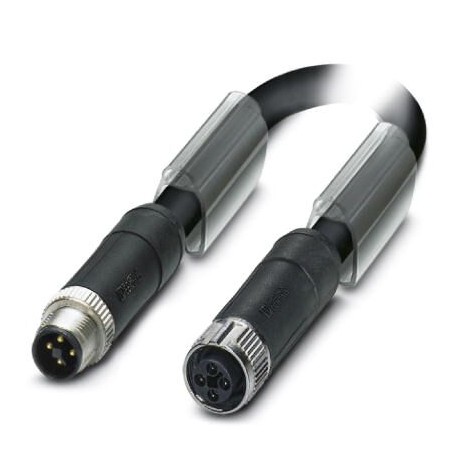

PHOENIX CONTACT SAC-4P-M12MST/ 5,0-PUR/FST SH SAC-4P-M12MST/ 5,0-PUR/FST SH 1417687 PHOENIX CONTACT Power cable SAC-4P-M12MST/ 5,0-PUR/FST SH 1417687 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-4P-M12MST/ 5,0-PUR/FST SH 1417687 PHOENIX CONTACT Power cable SAC-4P-M12MST/ 5,0-PUR/FST SH 1417687

SAC-4P-M12MST/ 5,0-PUR/FST SH

1417687

PHOENIX CONTACT

1 Pcs.

Power cable - SAC-4P-M12MST/ 5,0-PUR/FST SH - 1417687 Power cable, 4-pole halogen-free, shielded (Advanced Shielding Technology), Straight connector M12, coding: T, to Straight female M12, coding: T, cable length: 5 m, for direct current up to 12 A/63 V

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Power cable, 4-position, PUR halogen-free, black RAL 9005, shielded (Advanced Shielding Technology), Plug straight M12, T-coded, on Socket straight M12, T-coded, cable length: 5 m

Key Commercial Data

Orderkey1417687
Packing unit1
GTIN4055626124827
Custom tariff number85444290

Dimensions

Length of cable5 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
Degree of protectionIP65
IP67

General

Rated current at 40°C12 A
Rated voltage63 V DC
Number of positions4
Color handle areablack
Insulation resistance≥ 100 MΩ
CodingT power
Standards/regulationsM12 connector IEC 61076-2-111
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryIII
Degree of pollution3
Insertion/withdrawal cycles> 100
Torque0.4 Nm (M12 connector)

Material

Flammability rating according to UL 94V0
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPA
Material of grip bodyPA
Material, knurlsZinc die-cast, nickel-plated

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-111
Flammability rating according to UL 94V0

Cable

Cable typePUR halogen-free black
Cable type (abbreviation)PUR
Cable abbreviationLS9YC11Y-OB
Conductor cross section4x 1.5 mm²
AWG power supply16
Core diameter including insulation2.4 mm
Thickness, insulation1.2 mm (Outer cable sheath)
Wire colorsbrown, white, blue, black
Overall twist4 wires optimally twisted
ShieldingTinned copper-braided shield, approx. 85% covering
External sheath, colorblack RAL 9005
External cable diameter D9.7 mm ±0,3 mm
Smallest bending radius, fixed installation49 mm
Smallest bending radius, movable installation73 mm
Number of bending cycles4000000
Bending radius97 mm
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Torsion force± 25 °/m
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance≥ 10 MΩ*km (at 20 °C)
Conductor resistance≤ 13.3 Ω/km (at 20 °C)
Nominal voltage, cable300 V AC
Test voltage, cable1500 V AC (5 min.)
Flame resistanceaccording to EN 60332-1-2
in acc. to UL 1581 VW1
Halogen-freeaccording to VDE 0282-13 Appendix C
Resistance to oilin accordance with DIN EN 60811-2-1
According to DIN EN 50363-10-2
Ambient temperature (operation)-40 °C ... 90 °C (cable, fixed installation)
-30 °C ... 90 °C (cable, flexible installation)

Environmental Product Compliance

REACh SVHCDOTE 15571-58-1
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications

eCl@ss

eCl@ss 5.127061801
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311

ETIM

ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855

UNSPSC

UNSPSC 13.231251501
