SAC-4P-M12MSS/ 3,3-PUR PE

1425405

PHOENIX CONTACT

50 Pcs.

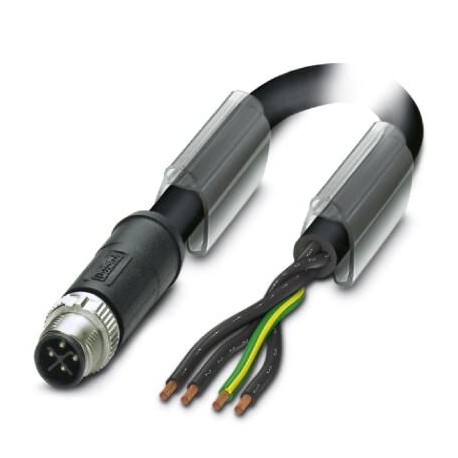

Power cable - SAC-4P-M12MSS/ 3,3-PUR PE - 1425405 Power cable, 4-pole halogen-free, Straight M12 connector, coding: S, to free cable end, cable length: 3.3 m, for AC up to 12 A/690 V

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Power cable, 4-position, PUR halogen-free, black-gray RAL 7021, Plug straight M12, S-coded, on free cable end, cable length: 3.3 m, for AC current up to 12 A/690 V

Key Commercial Data

Orderkey1425405
Packing unit1
GTIN4055626399430
Custom tariff number85444290

Dimensions

Length of cable3.3 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
Degree of protectionIP65
IP67

General

Rated current at 40°C12 A
Rated voltage690 V AC
Number of positions4
Color handle areablack
Insulation resistance≥ 100 MΩ
CodingS power
Standards/regulationsM12 connector IEC 61076-2-111
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryIII
Degree of pollution3
Insertion/withdrawal cycles> 100
Torque0.4 Nm (M12 connector)

Material

Flammability rating according to UL 94V0
Contact materialCuZn
Contact surface materialNi/Au
Contact carrier materialPA
Material of grip bodyPA
Material, knurlsZinc die-cast, nickel-plated

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-111
Flammability rating according to UL 94V0

Cable

Cable typePUR halogen-free black
Cable type (abbreviation)PUR
Cable abbreviationLi9YV1-11Y
UL AWM style20234 / 10492 (80°C/1000 V)
Conductor cross section4x 1.5 mm²
AWG power supply16
Conductor structure, voltage supply78x 0.15 mm
Core diameter including insulation2.45 mm ±0.05 mm
Thickness, insulation≥ 0.36 mm
Wire colorsBlack 1, black 2, black 3, green/yellow
Overall twist4 wires, twisted
Length of twist, overall twist93 mm
External sheath, colorblack-gray RAL 7021
Outer sheath thicknessapprox. 1.3 mm
External cable diameter D8.8 mm ±0.25 mm
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Number of bending cycles2000000
Minimum bending radius, drag chain applications10 x D
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Cable weight114 kg/km
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance≥ 1 GΩ*km (at 20 °C)
Conductor resistance≤ 13 Ω/km (at 20 °C)
Nominal voltage, cable≤ 1000 V AC
Test voltage, cable≥ 10000 V AC (Spark test)
Flame resistanceAccording to UL 758/1581 (Cable Flame)
according to UL 758/1581 FT1
According to DIN EN 60332-1-2
Halogen-freein accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Resistance to oilAccording to DIN EN 60811-2-1, 168 h at 100°C
According to UL 758, 168 h at 60°C
Other resistanceHydrolysis and microbe resistant as per VDE 0282 section 10
Low adhesion
abrasion-resistant
Resistant to salt water
Ambient temperature (operation)-50 °C ... 80 °C (cable, fixed installation)
-30 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications

eCl@ss

eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 9.027060311

ETIM

ETIM 6.0EC001855
ETIM 7.0EC001855

ETIM for 1425405 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) Other
Positioning cable feed, box-sided (EF005927) Other
Cable length (EF000536) 3.3 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -50 °C
Permitted cable outer temperature during assembling/handling (EF001685) -30 °C
Rated voltage (EF000228) 690 V
Degree of protection (IP) (EF005474) IP65

Product Datasheet
