View larger
Images are for illustrative purposes only. Please refer to data sheet for details

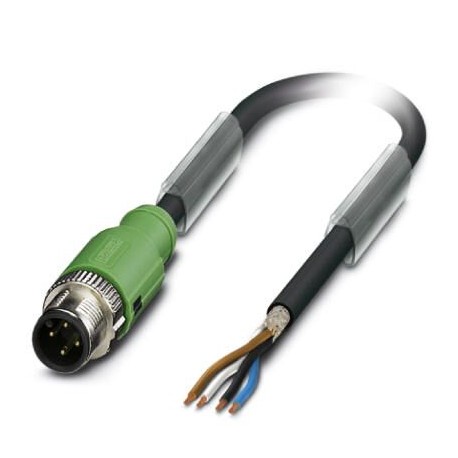

SAC-4P-M12MS/ 0,7-PUR SH 1425241 PHOENIX CONTACT Sensor/actuator cable SAC-4P-MS/ 0,7-PUR SH SCO 1425241
SAC-4P-M12MS/ 0,7-PUR SH
1425241
PHOENIX CONTACT
50 Pcs.
Sensor/actuator cable - SAC-4P-MS/ 0,7-PUR SH SCO - 1425241
Sensor/actuator cable, 4-pole, halogen-free PUR, greyish black RAL 7021, shielded, M12 SPEEDCON straight male connector, coding: A, to free cable end, cable length: 0.7 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Sensor/actuator cable, 4-position, PUR halogen-free, black-gray RAL 7021, shielded, Plug straight M12 SPEEDCON, A-coded, on free cable end, cable length: 0.7 m
Key Commercial Data
| Orderkey | 1425241 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626387529 |
| Custom tariff number | 85444290 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 6.0 | 27279200 |
|---|---|
| eCl@ss 7.0 | 27279218 |
| eCl@ss 9.0 | 27060311 |
ETIM
| ETIM 5.0 | EC001855 |
|---|---|
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
| Type of electrical connection, field-sided (EF005525) | M12 |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | Other |
| Positioning cable feed, box-sided (EF005927) | Other |
| Cable length (EF000536) | 0.7 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | CuSn |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -25 °C |
| Rated current In (EF008250) | 4 A |
| Rated voltage (EF000228) | 48 V |
| Degree of protection (IP) (EF005474) | IP65 |
