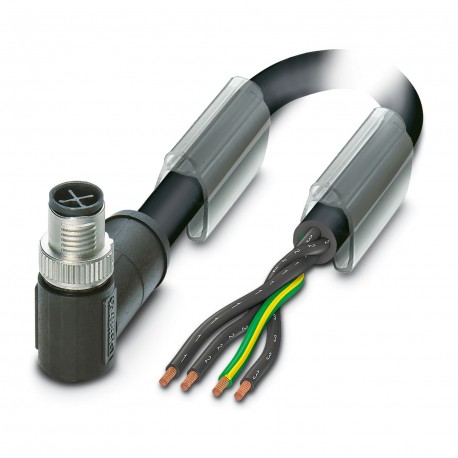

PHOENIX CONTACT SAC-4P-MRS/15,0-PUR PE SCO SAC-4P-MRS/15,0-PUR PE SCO 1420520 PHOENIX CONTACT Power cable SAC-4P-M12MRS/15,0-PUR PE 1420520 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-4P-MRS/15,0-PUR PE SCO 1420520 PHOENIX CONTACT Power cable SAC-4P-M12MRS/15,0-PUR PE 1420520

SAC-4P-MRS/15,0-PUR PE SCO

1420520

PHOENIX CONTACT

50 Pcs.

Power cable - SAC-4P-M12MRS/15,0-PUR PE - 1420520 Power cable, 4-pole, halogen-free PUR, greyish black RAL 7021, Angled connector M12, coding: S, to free cable end, cable length: 15 m, for alternating current up to 12 A/690 V

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Power cable, 4-position, PUR halogen-free, black-gray RAL 7021, Plug angled M12, S-coded, on free cable end, cable length: 15 m, for AC current up to 12 A/690 V

Key Commercial Data

Orderkey1420520
Packing unit1
GTIN4055626228396
Custom tariff number85444290

Dimensions

Length of cable15 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
Degree of protectionIP65
IP67

General

Rated current at 40°C12 A
Rated voltage690 V AC
Number of positions4
Color handle areablack
Insulation resistance≥ 100 MΩ
CodingS power
Standards/regulationsM12 connector IEC 61076-2-111
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryIII
Degree of pollution3
Insertion/withdrawal cycles> 100
Torque0.4 Nm (M12 connector)

Material

Flammability rating according to UL 94V0
Contact materialCuZn
Contact surface materialNi/Au
Contact carrier materialPA
Material of grip bodyPA
Material, knurlsZinc die-cast, nickel-plated

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-111
Flammability rating according to UL 94V0

Cable

Cable typePUR halogen-free black
Cable type (abbreviation)PUR
Cable abbreviationLi9YV1-11Y
UL AWM style20234 / 10492 (80°C/1000 V)
Conductor cross section4x 1.5 mm²
AWG power supply16
Conductor structure, voltage supply78x 0.15 mm
Core diameter including insulation2.45 mm ±0.05 mm
Thickness, insulation≥ 0.36 mm
Wire colorsBlack 1, black 2, black 3, green/yellow
Overall twist4 wires, twisted
Length of twist, overall twist93 mm
External sheath, colorblack-gray RAL 7021
Outer sheath thicknessapprox. 1.3 mm
External cable diameter D8.8 mm ±0.25 mm
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Number of bending cycles2000000
Minimum bending radius, drag chain applications10 x D
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Cable weight114 kg/km
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance≥ 1 GΩ*km (at 20 °C)
Conductor resistance≤ 13 Ω/km (at 20 °C)
Nominal voltage, cable≤ 1000 V AC
Test voltage, cable≥ 10000 V AC (Spark test)
Flame resistanceAccording to UL 758/1581 (Cable Flame)
according to UL 758/1581 FT1
According to DIN EN 60332-1-2
Halogen-freein accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Resistance to oilAccording to DIN EN 60811-2-1, 168 h at 100°C
According to UL 758, 168 h at 60°C
Other resistanceHydrolysis and microbe resistant as per VDE 0282 section 10
Low adhesion
abrasion-resistant
Resistant to salt water
Ambient temperature (operation)-50 °C ... 80 °C (cable, fixed installation)
-30 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications

eCl@ss

eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311

ETIM

ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855

UNSPSC

UNSPSC 13.231251501
