View larger
Images are for illustrative purposes only. Please refer to data sheet for details

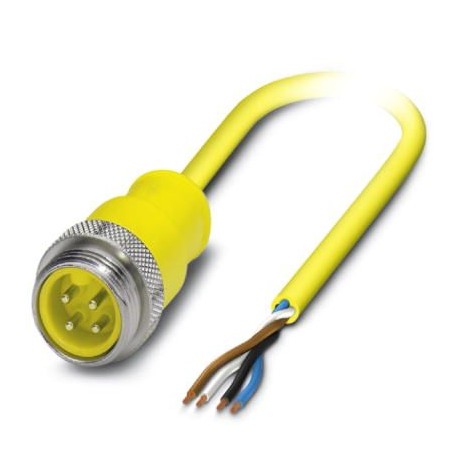

SAC-4P-MINMS/ 1,0-400 1577215 PHOENIX CONTACT Sensor/actuator cable
SAC-4P-MINMS/ 1,0-400
1577215
PHOENIX CONTACT
50 Pcs.
Sensor/actuator cable
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1577215 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356449748 |
| Weight per Piece (excluding packing) | 101.500 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
General
| Rated current at 40°C | 7 A |
|---|---|
| Rated voltage | 63 V DC |
| Number of positions | 4 |
| Insulation resistance | ≥ 10 MΩ |
| Coding | A - standard |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 2 |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PUR |
| Material of grip body | PUR |
| Material, knurls | Nickel-plated brass |
Cable
| Conductor cross section | 0.75 mm² |
|---|---|
| AWG signal line | 18 |
| Conductor structure, voltage supply | 42x 0.15 mm |
| Wire colors | brown, white, blue, black |
| External sheath, color | yellow |
| External cable diameter D | 6.3 mm |
| Outer sheath, material | PVC |
| Material conductor insulation | PVC |
| Ambient temperature (operation) | -25 °C ... 80 °C (cable, fixed installation) |
