PHOENIX CONTACT SAC-4P-M12MSD/ 2,0-936/M12MSD SAC-4P-M12MSD/ 2,0-936/M12MSD 1557222 PHOENIX CONTACT Network cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-4P-M12MSD/ 2,0-936/M12MSD 1557222 PHOENIX CONTACT Network cable

SAC-4P-M12MSD/ 2,0-936/M12MSD

1557222

PHOENIX CONTACT

10 Pcs.

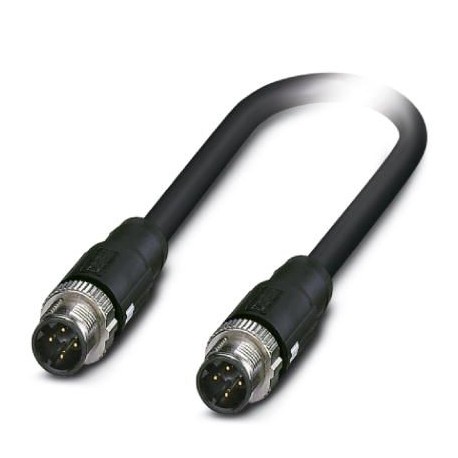

Network cable Network cable, PROFINET CAT5, 4-pole, shielded, M12 straight connector, encoding: D/IP65, to M12 straight connector, encoding: D/IP65, cable length: 2m, Item checked according to customer/railway application specification

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1557222
Packing unit1 pc
Minimum order quantity10 pc
NoteMade to Order (non-returnable)
GTIN4046356287937
Weight per Piece (excluding packing)170.100 g
Custom tariff number85444290
Country of originPL (Poland)

Dimensions

Length of cable2 m

Ambient conditions

Degree of protectionIP65

General data

Rated current at 40°C4 A
Rated voltage48 V AC
60 V DC
Number of positions4
Signal type/categoryPROFINET CAT5 (IEC 11801:2002)
Standards/regulationsM12 connector IEC 61076-2-101
Overvoltage categoryII
Degree of pollution3

Characteristics head 1

Head typePlug straight M12 / IP65
No. of positions (pin connector pattern)4
CodingD (Data)
Colorblack
Material (component)CuSn (Contact)
Ni/Au (Contact surface)
PA (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip)
Zinc die-cast, nickel-plated (Screw connection)
Shieldedyes
Insulation resistance≥ 100 MΩ
Insertion/withdrawal cycles≥ 100 (Quantity: 500 with Phoenix Contact mating connector)
Torque0.4 Nm
Ambient temperature (operation)-40 °C ... 90 °C
Weight10 g ±5 g

Characteristics head 2

Head typePlug straight M12 / IP65
No. of positions (pin connector pattern)4
CodingD (Data)
Colorblack
Material (component)CuSn (Contact)
Ni/Au (Contact surface)
PA (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip)
Zinc die-cast, nickel-plated (Screw connection)
Shieldedyes
Insulation resistance≥ 100 MΩ
Insertion/withdrawal cycles≥ 100 (Quantity: 500 with Phoenix Contact mating connector)
Torque0.4 Nm
Ambient temperature (operation)-40 °C ... 90 °C
Weight10 g ±5 g

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94V0

Cable

Cable typePROFINET railway applications
Cable type (abbreviation)936
Signal type/categoryPROFINET CAT5 (IEC 11801), 100 Mbps
Cable structure1x4xAWG22/7; SF/TQ
Conductor cross section4x 0.34 mm²
AWG signal line22
Conductor structure signal line7x 0.25 mm
Core diameter including insulation1.95 mm
Wire colorswhite-blue, orange-yellow
Overall twistStar quad
ShieldingPlastic-coated aluminum foil, tinned copper braided shield
Optical shield covering100 %
External sheath, colorblack RAL 9005
Outer sheath thickness≥ 0.8 mm
External cable diameter D7.25 mm ±0,3 mm
Minimum bending radius, fixed installation6 x D
Minimum bending radius, flexible installation10 x D
Cable weight81 g/m
Outer sheath, materialPE-X
Material conductor insulationPE-X
Conductor materialsilver-plated Cu litz wires
Conductor resistance≤ 54.4 Ω/km
Working capacitance≤ 65 pF (core-core)
≤ 100 pF (core-shield)
Wave impedance100 Ω ±5 Ω (f = 100 MHz)
Near end crosstalk attenuation (NEXT)80 dB (with 1 MHz)
76 dB (at 4 МHz)
67 dB (at 10 MHz)
60 dB (at 31.5 МHz)
56 dB (at 62.5 МHz)
53 dB (at 100 MHz)
Remote crosstalk attenuation (FEXT)80 dB (with 1 MHz)
70 dB (at 4 МHz)
65 dB (at 10 MHz)
58 dB (at 31.5 МHz)
59 dB (at 62.5 МHz)
67 dB (at 100 MHz)
Attenuation2 dB (with 1 MHz)
4 dB (at 4 МHz)
6.5 dB (at 10 MHz)
10.5 dB (at 31.5 МHz)
14 dB (at 62.5 МHz)
18 dB (at 100 MHz)
Return loss (RL)35 dB (at 4 МHz)
35 dB (at 10 MHz)
35 dB (at 31.5 МHz)
33 dB (at 62.5 МHz)
33 dB (at 100 MHz)
Signal speed66 c
Shield attenuation40 dB (30 MHz ≤ f ≤ 100 MHz)
Coupling resistance200.00 mΩ/m (f ≤ 30 MHz)
Nominal voltage, cable300 V AC
Test voltage, cable2000 V AC (50 Hz, 5 minutes)
Fire protection in rail vehiclesBS 6853 (Category Ia, Ib, II)
GM/RT 2130 (Category Ia, Ib, II)
EN 45545 (Risk level HL1 - HL3)
DIN 5510 (Fire protection level 1, 2, 3, 4)
NF F16-101 (Category A1, A2, B)
NF F16-101 (Class C/F0)
NFPA 130
UNI CEI 11170 (Risk level LR1 - LR4)
Flame resistanceEN 60332-1-2
EN 50266
EN 60332-3-25
NF C32-070, 2.1
NF C32-070, 2.2
UL 1685, 12 (FT4)
in accordance with ISO 6722-1 5.22 (UN ECE-R 118.01)
Halogen-freeAccording to EN 50267-2-1
Resistance to oilaccording to IRM 902, 72 h at 100 °C
Other resistanceResistance to fuels according to IRM 903, 168 h at 70 °C
Concentration of fumesBS 6853 D.8.7
EN 61034-2
UL 1685, 12 (FT4)
Fume corrosivenessEN 50267-2-2
Fume toxicityBS 6853 B.1
EN 50305, 9.2
Ambient temperature (operation)-50 °C ... 90 °C (cable, fixed installation)
-40 °C ... 90 °C (cable, flexible installation)

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1557222 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 2 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -50 °C
Permitted cable outer temperature during assembling/handling (EF001685) -40 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
