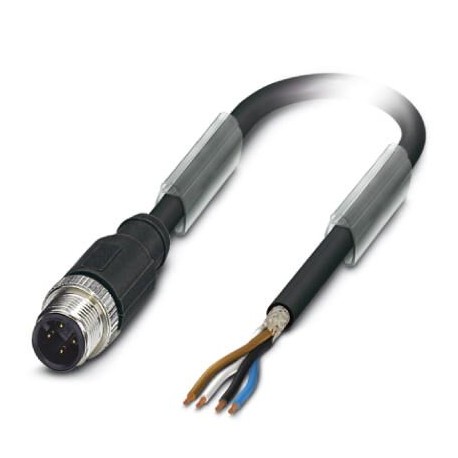

PHOENIX CONTACT SAC-4P-M12MS/1,0-PUR SH BK OBS SAC-4P-M12MS/1,0-PUR SH BK OBS 1424190 PHOENIX CONTACT Sensor/actuator cable SAC-4P-M12MS/1,0-PUR SH BK OBS .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-4P-M12MS/1,0-PUR SH BK OBS 1424190 PHOENIX CONTACT Sensor/actuator cable SAC-4P-M12MS/1,0-PUR SH BK OBS ..

SAC-4P-M12MS/1,0-PUR SH BK OBS

1424190

PHOENIX CONTACT

100 Pcs.

Sensor/actuator cable - SAC-4P-M12MS/1,0-PUR SH BK OBS - 1424190 Sensor/actuator cable, 4-pole, halogen-free PUR, greyish black RAL 7021, shielded (Advanced Shielding Technology), Straight connector M12, coding: A, to free cable end, cable length: 1 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Sensor/actuator cable, 4-position, PUR halogen-free, black-gray RAL 7021, shielded, cable length: 1 m

Key Commercial Data

Orderkey1424190
Packing unit1
GTIN4055626369402
Custom tariff number85444290

Dimensions

Length of cable1 m
Stripping length of the free conductor end50 mm

General

Rated current at 40°C4 A
Rated voltage48 V AC
60 V DC
Number of positions4
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryII
Degree of pollution3

Material

Flammability rating according to UL 94HB
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94HB

Cable

Cable typePUR halogen-free black
Cable type (abbreviation)PUR
Cable abbreviationLi9Y-V1-C-V1-11Y
UL AWM style20549 / 10493 (80°C/300 V)
Conductor cross section4x 0.34 mm² (Signal line)
AWG signal line22
Conductor structure signal line42x 0.10 mm
Core diameter including insulation1.27 mm ±0.02 mm (Signal line)
Thickness, insulation≥ 0.21 mm
Wire colorsbrown, white, blue, black
Overall twist4 wires, twisted
ShieldingTinned copper braided shield
Optical shield covering80 %
External sheath, colorblack-gray RAL 7021
Outer sheath thicknessapprox. 0.5 mm
External cable diameter D4.95 mm ±0.2 mm
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Number of bending cycles10000000
Minimum bending radius, drag chain applications10 x D
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Cable weight36 kg/km
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance≥ 100 GΩ*km (at 20 °C)
Conductor resistancemax. 58 Ω/km (at 20 °C)
Cable capacity≤ 80 pF/m (Conductor-Conductor)
≤ 135 pF/m (Wire/shield)
Wave impedance≥ 62 Ω (f = 10 MHz)
Conductor inductanceapprox. 0.75 mH/km (f = 1 kHz)
Nominal voltage, cable≤ 300 V
Test voltage, cable≥ 3000 V
Special propertiesFlexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or varnish
Low adhesion surface
Flame resistancein accordance with UL 758/1581 FT2
DIN EN 60332-2-2 (20 s)
Halogen-freein accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Resistance to oilin accordance with DIN EN 60811-2-1
Other resistanceHighly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant
Resistant to salt water
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
abrasion-resistant
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 9.027060311

ETIM

ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855

ETIM for 1424190 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) Other
Positioning cable feed, box-sided (EF005927) Other
Cable length (EF000536) 1 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -25 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65
