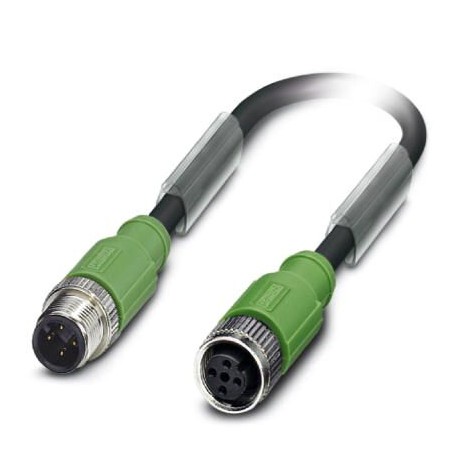

SAC-4P-M12MS/1,0-PUR/FS SH 2X3 1426481 PHOENIX CONTACT Cable for sensors/actuators, 4-pole, PUR halogen-free..
SAC-4P-M12MS/1,0-PUR/FS SH 2X3
1426481
PHOENIX CONTACT
25 Pcs.
Cable for sensors/actuators, 4-pole, PUR halogen-free, black-gray RAL 7021, shielded, Plug straight M12, coded A, A connection socket straight M12, coded, cable length: 1 m, a version of the client, special Connection Allocation pins: 1-1; 2-3; 3-2; 4-4
Sensor/actuator cable, 4-pole, halogen-free PUR, greyish black RAL 7021, shielded, M12 straight male connector, coding: A, to M12 straight connection female, coding: A, cable length: 1 m, Customer variant, Special connection, Pin mapping: 1-1; 2-3; 3-2; 4-4
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Cables for sensors/actuators, 4-pin, PUR, free of halogen, grey-black RAL 7021, shielded, Plug straight M12, A-coded, on socket straight M12, A-coded, cable length: 1 m, Variant, client, special Protection, pin Assignment : 1-1; 2-3; 3-2; 4-4
Trade data
| Order Code | One million four hundred twenty six thousand four hundred eighty one |
|---|---|
| Packaging unit | One |
| GTIN | Four trillion fifty five billion six hundred twenty six million four hundred fifty nine thousand nine hundred fifty |
| Number of the customs tariff | Eighty five million four hundred forty four thousand two hundred ninety |
Ratings
| Cable length | 1 m |
|---|
Environmental Conditions
| Ambient temperature (operation) | -25 °C ... 90 °C (male connector / female) |
|---|
General
| Reference voltage | 48 V AC |
|---|---|
| 60 V DC | |
| Number of poles | Four |
| Insulation resistance | ≥ 100 MΩ |
| Tamperproof | A - standard |
| Status display | Not |
| Overvoltage category | II |
| Pollution degree | Three |
| Cycles-plug | ≥ 100 |
Material
| Flammability class according to UL 94 | HB |
|---|---|
| Contact material | CuSn |
| Material of contact surface | Ni/Au |
| Material of door-contacts | TPU GF |
| Material of grip surface | TPU, flame-retardant, self-extinguishing |
| Material of the wheel | Zinc die-cast, nickel-plated |
| Seal material | NBR |
Standards and specifications
| Flammability class according to UL 94 | HB |
|---|
Cable
| Type of cable | PURE free halogen black |
|---|---|
| Cable Type (symbol) | PURE |
| Symbol cable | Li9Y-V1-C-V1-11Y |
| Style UL AWM | 20549 / 10493 (80 °C / 300 V) |
| Cross Section of the conductor | 4x 0.34 mm2 (signal Line) |
| AWG line signals | Twenty two |
| Structure of the driver signal line | 42x 0.10 mm |
| Diameter of wire with insulation | 1.27 mm ±0.02 mm (signal Line) |
| Thickness isolation | ≥ 0.21 mm |
| Colours of the wires | brown, white, blue, black |
| Cabling total | 4 wires twisted longitudinally |
| Shielding | Braid wire tinned copper |
| Optical coating shielding | 80 % |
| Outer sheath, colour | black-grey RAL 7021 |
| Thickness outer sheath | approx 0.5 mm |
| Outside diameter of the cable D | 4,95 mm ±0.2 mm |
| Minimum radius of curvature, fixed position | 5 x D |
| Minimum radius of curvature, position flexible | 10 x D |
| Number of bending cycles | Ten million |
| Minimum radius of curvature, use of chain-cables | 10 x D |
| Race | 10 m |
| Movement speed | 3 m/s |
| Acceleration | 10 m/s2 |
| Weight of the cable | 36 kg/km |
| Outer sheath, material | PURE |
| Insulating material of the wire | PP |
| Conductive material | Cord Cu nu |
| Insulation resistance | ≥ 100 GΩ*km (at 20 °C) |
| Resistance of the conductor | max. 58 Ω/km (at 20 °C) |
| Line capacity | ≤ 80 pF/m (Conductor-conductor) |
| ≤ 135 pF/m (Shielding conductor) | |
| Wave impedance | ≥ 62 Ω (f = 10 MHz) |
| Inductance | send 0,75 mH/km (f = 1 kHz) |
| Nominal voltage cable | ≤ 300 V |
| Test voltage cable | ≥ 3000 V |
| Special properties | compatible chain-cables |
| silicone-free | |
| free from substances harmful to the application of coatings | |
| The non-adhesive Surface | |
| Resistance to the spread of flames | according to UL 758/1581 FT2 |
| DIN EN 60332-2-2 (20 s) | |
| Absence of halogen | according to DIN VDE 0472 part 815 |
| according to DIN EN 50267-2-1 | |
| Oil resistance | according to DIN EN 60811-2-1 |
| Resistance special | good resistance to acids, alkalis and solvents |
| resistant to hydrolysis and microbes | |
| resistant to sea water | |
| relatively UV-resistant IN accordance with DIN en ISO 4892-2-A | |
| wear-resistant | |
| Ambient temperature (operation) | -40 °C ... 80 °C (cable, fixed installation) |
| -25 °C ... 80 °C (cable, installation flexible) |
Environmental Product Compliance
| China RoHS | Period of intended use : unlimited = EFUP-e |
|---|---|
| No hazardous substances exceeding the threshold values ; |
Classifications
eCl@ss
| eCl@ss 6.0 | Twenty seven million two hundred seventy nine thousand two hundred |
|---|---|
| eCl@ss 7.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| eCl@ss 9.0 | Twenty seven million sixty thousand three hundred eleven |
ETIM
| ETIM 5.0 | EC001855 |
|---|---|
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
| Type of electrical connection, field-sided (EF005525) | M12 |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | M12 |
| Type of plug-in contact, box-sided (EF008386) | Female (bus) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 1 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | CuSn |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -25 °C |
| Rated voltage (EF000228) | 48 V |
| Degree of protection (IP) (EF005474) | IP65 |
