SAC-4P-M12MS/ 0,29-PUR 0,07 SN 1106726 PHOENIX CONTACT Sensor/actuator cable, 4-position, PUR halogen-free, ..

SAC-4P-M12MS/ 0,29-PUR 0,07 SN

1106726

PHOENIX CONTACT

100 Pcs.

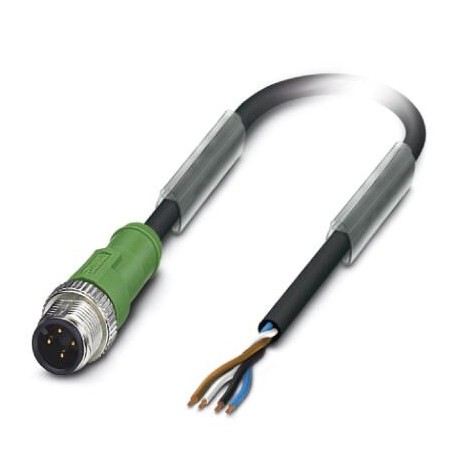

Sensor/actuator cable, 4-position, PUR halogen-free, black-gray RAL 7021, Plug straight M12, A-coded, on free cable end, cable length: 0.285 m, free end= 70 mm, wires 3 mm, stripped and tin-plated Sensor/actuator cable, 4-pole, halogen-free PUR, greyish black RAL 7021, M12 straight male connector, coding: A, to free cable end, cable length: 0.285 m, free end = 70 mm, 3 mm wires, stripped and tinned

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1106726
Packing unit1
GTIN4063151000103
Custom tariff number85444290

Drawings

Dimensional drawing

Dimensional drawing
Plug, M12 x 1, straight, shielded

Circuit diagram

Circuit diagram
Contact assignment of the M12 plug

Schematic diagram

Schematic diagram
Pin assignment M12 plug, 4-pos., A-coded, view plug side

Cable cross section

Cable cross section
PUR halogen-free black [PUR]

Back to top

Dimensions

Length of cable0.285 m
Stripping length of the free conductor end50 mm
Back to top

Ambient conditions

Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)
Back to top

General

Rated current at 40°C4 A
Rated voltage250 V AC
250 V DC
Number of positions4
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles≥ 100
Back to top

Material

Flammability rating according to UL 94HB
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR
Back to top

Standards and Regulations

Standards/specificationsM12 connector IEC 61076-2-101
Flammability rating according to UL 94HB
Back to top

Cable

Cable typePUR halogen-free black
Cable type (abbreviation)PUR
Cable abbreviationLi9Y11Y-HF
UL AWM style20549 / 10493 (80°C/300 V)
Conductor cross section4x 0.34 mm²
AWG signal line22
Conductor structure signal line42x 0.10 mm
Core diameter including insulation1.27 mm ±0.02 mm
Thickness, insulation≥ 0.21 mm
Wire colorsbrown, white, blue, black
Overall twist4 wires, twisted
External sheath, colorblack-gray RAL 7021
Outer sheath thicknessapprox. 0.5 mm
External cable diameter D4.2 mm ±0.15 mm
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Number of bending cycles10000000
Minimum bending radius, drag chain applications10 x D
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Cable weight30 kg/km
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance≥ 1 GΩ*km
Conductor resistance≤ 58 Ω/km
Nominal voltage, cable≤ 300 V
Test voltage, cable≥ 3000 V
Special propertiesFlexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or varnish
flexible
Flame resistancein accordance with UL 758/1581 FT2
DIN EN 60332-2-2 (20 s)
Halogen-freein accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Resistance to oilin accordance with DIN EN 60811-2-1
Other resistanceHighly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Low adhesion
abrasion-resistant
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)
Back to top

Classifications

eCl@ss

eCl@ss 9.027060311
Back to top

ETIM

ETIM 6.0EC001855
ETIM 7.0EC001855
Back to top

ETIM for 1106726 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) Other
Positioning cable feed, box-sided (EF005927) Other
Cable length (EF000536) 0.285 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -25 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 250 V
Degree of protection (IP) (EF005474) IP65
