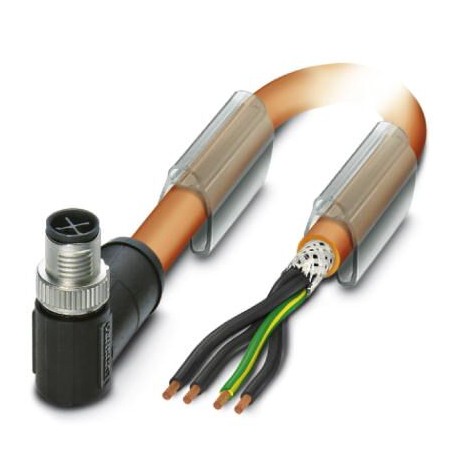

PHOENIX CONTACT SAC-4P-M12MRS/15,0-PUR PE SH SAC-4P-M12MRS/15,0-PUR PE SH 1078273 PHOENIX CONTACT Power cable, 4-position, PUR halogen-free, orange RAL 2.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-4P-M12MRS/15,0-PUR PE SH 1078273 PHOENIX CONTACT Power cable, 4-position, PUR halogen-free, orange RAL 2..

SAC-4P-M12MRS/15,0-PUR PE SH

1078273

PHOENIX CONTACT

25 Pcs.

Power cable, 4-position, PUR halogen-free, orange RAL 2003, shielded (Advanced Shielding Technology), Plug angled M12, S-coded, on free cable end, cable length: 15 m, for AC current up to 12 A/690 V Power cable, 4-pole halogen-free, shielded (Advanced Shielding Technology), M12 angled connector, coding: S, to free cable end, cable length: 15 m, for AC up to 12 A/690 V

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1078273
Packing unit1
GTIN4055626811994
Custom tariff number85444290

Drawings

Dimensional drawing

Dimensional drawing
M12 x 1 male plug, angled

Circuit diagram

Circuit diagram
Contact assignment of the M12 plug

Schematic diagram

Schematic diagram
M12 plug pin assignment, 4-pos., S-coded, plug side view

Cable cross section

Cable cross section
PUR halogen-free orange shielded [PUR]

Back to top

Dimensions

Length of cable15 m
Back to top

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
Degree of protectionIP65
IP67
Back to top

General

Rated current at 40°C12 A
Rated voltage690 V AC
Number of positions4
Color handle areablack
Insulation resistance≥ 100 MΩ
CodingS power
Standards/regulationsM12 connector IEC 61076-2-111
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryIII
Degree of pollution3
Insertion/withdrawal cycles> 100
Torque0.4 Nm (M12 connector)
Back to top

Material

Flammability rating according to UL 94V0
Contact materialCuZn
Contact surface materialNi/Au
Contact carrier materialPA
Material of grip bodyPP
Material, knurlsZinc die-cast, nickel-plated
Back to top

Standards and Regulations

Standards/specificationsM12 connector IEC 61076-2-111
Flammability rating according to UL 94V0
Back to top

Cable

Cable typePUR halogen-free orange shielded
Cable type (abbreviation)PUR
Cable abbreviation9YSLC11Y-JZ
UL AWM style20234 / 10492 (80°C/1000 V)
Conductor cross section4x 1.5 mm²
AWG power supply16
Conductor structure, voltage supply78x 0.15 mm
Core diameter including insulation≤ 2.5 mm
Thickness, insulation0.4 mm
Wire colorsBlack 1, black 2, black 3, green/yellow
Overall twist4 wires optimally twisted
ShieldingTinned copper-braided shield, approx. 85% covering
External sheath, colororange RAL 2003
Outer sheath thickness1.2 mm
External cable diameter D9.7 mm ±0,3 mm
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation7.5 x D
Number of bending cycles4000000
Minimum bending radius, drag chain applications10 x D
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Torsion force± 25 °/m
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance≥ 10 MΩ*km (at 20 °C)
Conductor resistance≤ 13.3 Ω/km (at 20 °C)
Nominal voltage, cable1000 V AC
Test voltage, cable4260 V AC (5 min.)
Flame resistanceaccording to EN 60332-1-2
in acc. to UL 1581 VW1
According to CSA C 22.2 No. 210-05 FT1
Halogen-freeaccording to VDE 0282-13 Appendix C
Resistance to oilin accordance with DIN EN 60811-2-1
According to DIN EN 50363-10-2
Other resistanceUV resistant
Low adhesion
Ambient temperature (operation)-40 °C ... 90 °C (cable, fixed installation)
-30 °C ... 90 °C (cable, flexible installation)
Back to top

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 9.027060311
Back to top

ETIM for 1078273 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Angled
Type of electrical connection, box-sided (EF005524) Other
Positioning cable feed, box-sided (EF005927) Other
Cable length (EF000536) 15 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -30 °C
Rated voltage (EF000228) 690 V
Degree of protection (IP) (EF005474) IP65
