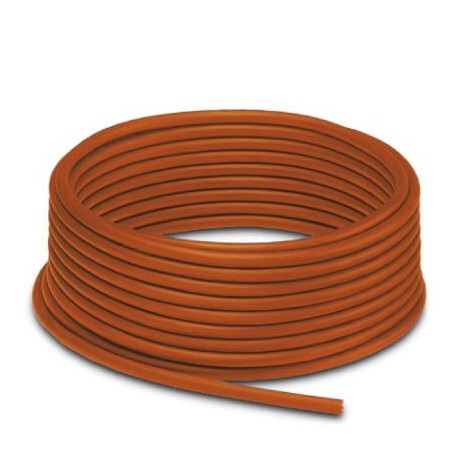

PHOENIX CONTACT SAC-4P-500,0-180/0,34 SAC-4P-500,0-180/0,34 1419218 PHOENIX CONTACT Sensor/actuator cable, 4-wire, unshielded, PUR, halogen-free, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-4P-500,0-180/0,34 1419218 PHOENIX CONTACT Sensor/actuator cable, 4-wire, unshielded, PUR, halogen-free, ..

SAC-4P-500,0-180/0,34

1419218

PHOENIX CONTACT

1 Pcs.

Sensor/actuator cable, 4-wire, unshielded, PUR, halogen-free, orange outer sheath, 4 x 0.34 mm², length: 500 m Sensor/actuator cable, 4 conductors, unshielded, halogen-free PUR, orange outer sheath, 4x 0.34 mm², length: 500 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1419218
Packing unit1 pc
GTIN4055626159027
Weight per Piece (excluding packing)0.000 g
Custom tariff number85444995
Country of originDE (Germany)

Drawings

Cable cross section

Cable cross section
PUR halogen-free orange [180]

Back to top

Dimensions

Length of cable500 m
Back to top

General

Number of positions4
Back to top

Cable

Cable typePUR halogen-free orange
Cable type (abbreviation)180
Cable abbreviationLi9Y-11Y
UL AWM style20549
Conductor cross section4x 0.34 mm² (Signal line)
AWG signal line22
Conductor structure signal line42x 0.10 mm
Core diameter including insulation1.27 mm ±0.02 mm (Signal line)
Thickness, insulation≥ 0.21 mm (Core insulation)
approx. 0.8 mm (Outer cable sheath)
Wire colorsbrown, white, blue, black
Overall twist4 wires, twisted
External sheath, colororange RAL 2003
External cable diameter D4.7 mm ±0.15 mm
Smallest bending radius, fixed installation23.5 mm
Smallest bending radius, movable installation47 mm
Number of bending cycles4000000
Bending radius47 mm
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Cable weight30 kg/km
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance≥ 1 GΩ*km (at 20 °C)
Conductor resistancemax. 58 Ω/km (at 20 °C)
Nominal voltage, cable≤ 300 V
Test voltage, cable≥ 3000 V
Special propertiesFree of substances which would hinder coating with paint or varnish
Flame resistancein accordance with UL 758/1581 FT2
Halogen-freein accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Resistance to oilin accordance with DIN EN 60811-2-1
Other resistanceResistant to salt water
hydrolysis and microbe resistant
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)
Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311
Back to top

ETIM

ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855
Back to top

UNSPSC

UNSPSC 13.231251501
UNSPSC 19.031251501
UNSPSC 20.031251501
UNSPSC 21.031251501
