PHOENIX CONTACT SAC-4P-20,0-PUR/M12FSS PE SAC-4P-20,0-PUR/M12FSS PE 1100838 PHOENIX CONTACT Power cable, 4-position, PUR halogen-free, black-gray RAL .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-4P-20,0-PUR/M12FSS PE 1100838 PHOENIX CONTACT Power cable, 4-position, PUR halogen-free, black-gray RAL ..

SAC-4P-20,0-PUR/M12FSS PE

1100838

PHOENIX CONTACT

1 Pcs.

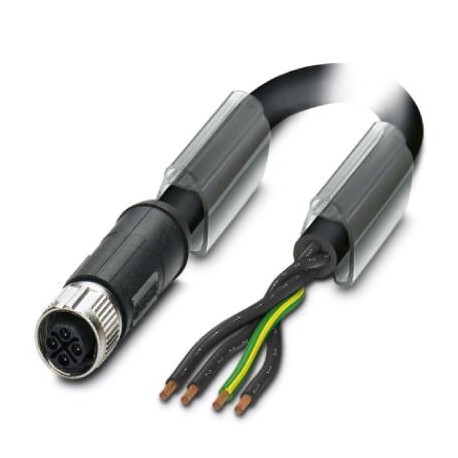

Power cable, 4-position, PUR halogen-free, black-gray RAL 7021, free cable end, on Socket straight M12, S-coded, cable length: 20 m, for AC current up to 12 A/690 V Power cable, 4-pole halogen-free, free cable end, to straight female M12, coding: S, cable length: 20 m, for alternating current up to 12 A/690 V

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1100838
Packing unit1
GTIN4055626956176
Custom tariff number85444290

Drawings

Diagram

Diagram
Current carrying capacity

Dimensional drawing

Dimensional drawing
M12 x 1 socket, straight

Circuit diagram

Circuit diagram
Contact assignment of the M12 socket

Schematic diagram

Schematic diagram
Pin assignment of M12 socket, 4-pos., S-coded, socket side view

Cable cross section

Cable cross section
PUR halogen-free black [PUR]

Back to top

Dimensions

Length of cable20 m
Back to top

Ambient conditions

Degree of protectionIP65
IP67
IP68
Back to top

General

Rated current at 40°C12 A
Rated voltage690 V AC
Number of positions4
Insulation resistance≥ 100 MΩ
CodingS power
Standards/regulationsM12 connector IEC 61076-2-111
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryIII
Degree of pollution3
Insertion/withdrawal cycles> 100
Torque0.4 Nm
Back to top

Material

Flammability rating according to UL 94V0
Contact materialCuZn
Contact surface materialNi/Au
Contact carrier materialPA
Material of grip bodyPP
Material, knurlsZinc die-cast, nickel-plated
Back to top

Standards and Regulations

Standards/specificationsM12 connector IEC 61076-2-111
Flammability rating according to UL 94V0
Back to top

Cable

Cable typePUR halogen-free black
Cable type (abbreviation)PUR
Cable abbreviationLi9YV1-11Y
UL AWM style20234 / 10492 (80°C/1000 V)
Conductor cross section4x 1.5 mm²
AWG power supply16
Conductor structure, voltage supply78x 0.15 mm
Core diameter including insulation2.45 mm ±0.05 mm
Thickness, insulation≥ 0.36 mm
Wire colorsBlack 1, black 2, black 3, green/yellow
Overall twist4 wires, twisted
Length of twist, overall twist93 mm
External sheath, colorblack-gray RAL 7021
Outer sheath thicknessapprox. 1.3 mm
External cable diameter D8.8 mm ±0.25 mm
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Number of bending cycles2000000
Minimum bending radius, drag chain applications10 x D
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Cable weight114 kg/km
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance≥ 1 GΩ*km (at 20 °C)
Conductor resistance≤ 13 Ω/km (at 20 °C)
Nominal voltage, cable≤ 1000 V AC
Test voltage, cable≥ 10000 V AC (Spark test)
Flame resistanceAccording to UL 758/1581 (Cable Flame)
according to UL 758/1581 FT1
According to DIN EN 60332-1-2
Halogen-freein accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Resistance to oilAccording to DIN EN 60811-2-1, 168 h at 100°C
According to UL 758, 168 h at 60°C
Other resistanceHydrolysis and microbe resistant as per VDE 0282 section 10
Low adhesion
abrasion-resistant
Resistant to salt water
Ambient temperature (operation)-50 °C ... 80 °C (cable, fixed installation)
-30 °C ... 80 °C (cable, flexible installation)
Back to top

Classifications

eCl@ss

eCl@ss 9.027060311
Back to top

ETIM for 1100838 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) Other
Positioning cable feed, field-sided (EF005928) Other
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 20 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -50 °C
Permitted cable outer temperature during assembling/handling (EF001685) -30 °C
Rated voltage (EF000228) 690 V
Degree of protection (IP) (EF005474) IP65

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
