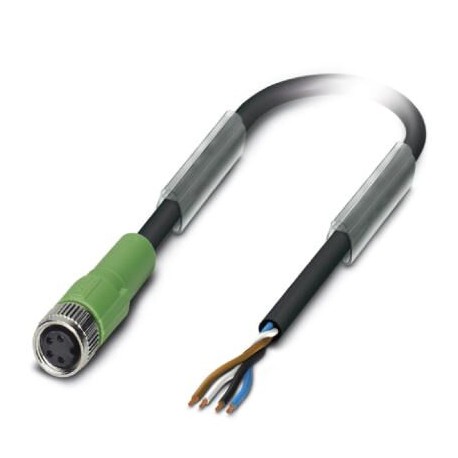

PHOENIX CONTACT SAC-4P- 2,0-PVC/M 8FS SAC-4P- 2,0-PVC/M 8FS 1417629 PHOENIX CONTACT Sensor/actuator cable SAC-4P- 2,0-PVC/M 8FS 1417629 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-4P- 2,0-PVC/M 8FS 1417629 PHOENIX CONTACT Sensor/actuator cable SAC-4P- 2,0-PVC/M 8FS 1417629

SAC-4P- 2,0-PVC/M 8FS

1417629

PHOENIX CONTACT

50 Pcs.

Sensor/actuator cable - SAC-4P- 2,0-PVC/M 8FS - 1417629 Sensor/actuator cable, 4-pole, PVC, black RAL 9005, free cable end, to M8 straight connection female, cable length: 2 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Sensor/actuator cable, 4-position, PVC, black RAL 9005, free cable end, on Socket straight M8, cable length: 2 m

Key Commercial Data

Orderkey1417629
Packing unit1
GTIN4055626118482
Custom tariff number85444290

Dimensions

Length of cable2 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)

General

Rated current at 40°C4 A
Rated voltage48 V AC
60 V DC
Number of positions4
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM8 connector IEC 61076-2-104
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles≥ 100

Material

Flammability rating according to UL 94HB
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR

Standards and Regulations

Standard designationM8 connector
Standards/regulationsIEC 61076-2-104
Flammability rating according to UL 94HB

Cable

Cable typePVC black
Cable type (abbreviation)PVC
Cable abbreviationLiYY
Conductor cross section4x 0.25 mm² (Signal line)
AWG signal line24
Conductor structure signal line14x 0.15 mm
Core diameter including insulation1.17 mm ±0.05 mm
Thickness, insulation≥ 0.23 mm (Core insulation)
≥ 0.76 mm (Outer cable sheath)
Wire colorsbrown, white, blue, black
Overall twist4 wires, twisted
External sheath, colorblack RAL 9005
External cable diameter D4.4 mm ±0.15 mm
Cable weight33 kg/km
Outer sheath, materialPVC
Material conductor insulationPVC
Conductor materialBare Cu litz wires
Insulation resistance≥ 100 MΩ*km (at 20 °C)
Conductor resistancemax. 79 Ω/km (at 20 °C)
Nominal voltage, cable≤ 300 V
Test voltage, cable≥ 3000 V
Flame resistanceAs per UL-Style 2464
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 5.127061801
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311

ETIM

ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855

UNSPSC

UNSPSC 13.231251501
