SAC-4P-1,5-105/M12FRL

1425037

PHOENIX CONTACT

1 Pcs.

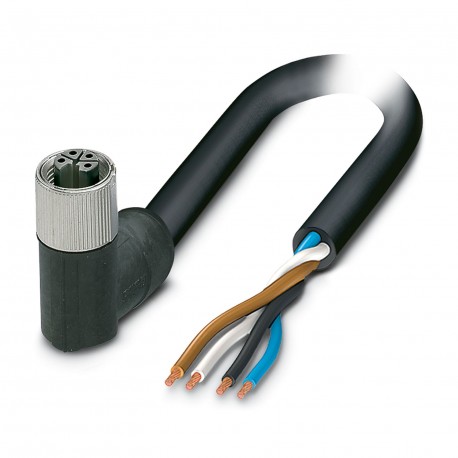

Power cable Power cable, 4-pole halogen-free, free cable end, to Angled Female M12, coding: L, cable length: 1.5 m, for direct current up to 12 A/63 V Power cable, 4-position, PUR halogen-free, black-gray RAL 7021, free cable end, on Socket angled M12, coding: L, cable length: 1.5 m, For direct current up to 12 A/63 V

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typePower cable
ApplicationPower supply
Number of positions4
No. of cable outlets1
Shieldedno
CodingL
Data management status
Article revision06
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Material specifications
Flammability rating according to UL 94V0
Material of grip bodyPP
Contact materialCuZn
Contact surface materialNi/Au
Contact carrier materialPA
Material for screw connectionZinc die-cast, nickel-plated
Electrical properties
Insulation resistance≥ 100 MΩ
Nominal voltage UN63 V DC
Nominal current IN12 A
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 100
Connector
Connection 1
Typefree cable end
Connection 2
TypeSocket angled M12
Coding typeL (Power)
Cable/line
Cable length1.5 m
PUR halogen-free black [PUR]
Dimensional drawingwnrcyamhgb.jpg
Cable weight83 kg/km
UL AWM Style20549 / 10493 (80°C/300 V)
Number of positions4
Shieldedno
Cable typePUR halogen-free black [PUR]
Conductor cross section4x 1.5 mm²
Wire diameter incl. insulation2.2 mm ±0.05 mm
External cable diameter6.75 mm ±0.2 mm
Outer sheath, materialPUR
External sheath, colorblack-gray RAL 7021
Conductor materialBare Cu litz wires
Material wire insulationPP
Single wire, colorbrown, white, blue, black
Thickness, insulation≥ 0.26 mm
Thickness, outer sheathapprox. 0.70 mm
Overall twist4 wires, twisted
Max. conductor resistance≤ 14.1 Ω/km (at 20 °C)
Insulation resistance≥ 1 GΩ*km (at 20 °C)
Nominal voltage, cable≤ 300 V AC
Test voltage≥ 3000 V AC (Spark test)
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Smallest bending radius, fixed installation34 mm
Smallest bending radius, movable installation68 mm
Dynamic load capacity (bending)Max. bending cycles: 4000000, Bending radius: 10 x D, Traversing path: 10 m, Traversing rate: 3 m/s, Acceleration: 10 m/s²
Halogen-freein accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Flame resistanceAccording to UL 758/1581 (Cable Flame)
in accordance with UL 758/1581 FT2
according to DIN EN 60332-2-2
Resistance to oilaccording to DIN EN 60811-404, 168 h at 100 °C
according to UL 758, 168 h at 60 °C
Other resistanceHydrolysis and microbe resistant as per VDE 0282 section 10
Low adhesion
abrasion-resistant
Resistant to salt water
Ambient temperature (operation)-50 °C ... 80 °C (cable, fixed installation)
-30 °C ... 80 °C (Cable, flexible installation)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
IP67
Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
Standards and regulations
Standard designationM12 connector
Standards/specificationsIEC 61076-2-111

ETIM for 1425037 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) Other
Positioning cable feed, field-sided (EF005928) Other
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Angled
Cable length (EF000536) 1.5 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -50 °C
Permitted cable outer temperature during assembling/handling (EF001685) -30 °C
Rated voltage (EF000228) 63 V
Degree of protection (IP) (EF005474) IP65

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
