View larger
Images are for illustrative purposes only. Please refer to data sheet for details

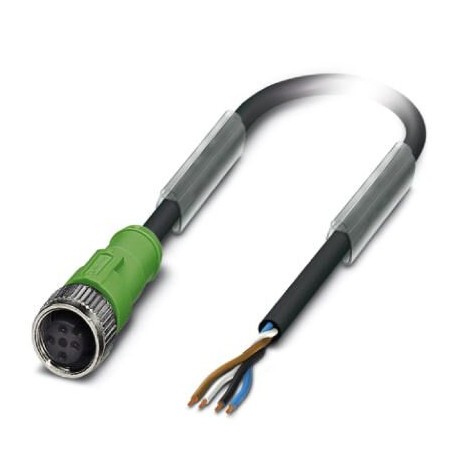

SAC-4P-10,0-PUR/M12FS SORI 1534177 PHOENIX CONTACT Cable for sensors/actuators, 4-pole, PUR halogen-free, bl..
SAC-4P-10,0-PUR/M12FS SORI
1534177
PHOENIX CONTACT
50 Pcs.
Cable for sensors/actuators, 4-pole, PUR halogen-free, black RAL 9005, end of free cable, Female straight connection M12, coded, cable length: 10 m, Variant of the client
Sensor/actuator cable, 4-pole, halogen-free PUR, greyish black RAL 7021, free cable end, to Straight connection female M12, coding: A, cable length: 10 m, Customer variant
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Cable for sensors/actuators, 4-pole, PUR halogen-free, black-gray RAL 7021, end of free cable, Female straight connection M12, coded, cable length: 10 m, Variant of the client
Data commercial
| Key order | One million five hundred thirty four thousand one hundred seventy seven |
|---|---|
| Packing unit | 1 pcs |
| Key selling | BF1CCA - |
| Minimum order quantity | 25 pcs |
| EAN | Four trillion seventeen billion nine hundred eighteen million nine hundred ninety three thousand six hundred ten |
| Unit weight (excluding packaging) | 444,000 us g |
| Tariff number tariff | Eighty five million four hundred forty four thousand two hundred ninety |
| Country of origin | PL (Poland) |
Measures
| Cable length | 10 m |
|---|
Environmental conditions
| Index of protection | IP65 |
|---|---|
| IP67 |
Overview
| Current sizing at 40 °C | 4 To |
|---|---|
| Tension sizing | 250 V AC |
| 250 V DC | |
| Number of poles | Four |
| Insulation resistance | ≥ 100 MΩ |
| Encoding | A - standard |
| Status indication | Not |
| Protective circuit/component protection | without connect |
| Category surge | II |
| Pollution degree | Three |
| Cycles of plug | ≥ 100 |
| Tightening torque | 0.4 Nm |
Material
| Class of flammability according to UL 94 | HB |
|---|---|
| Material contact | CuSn |
| Material contact surface | Ni/Au |
| Material support of contacts | TPU GF |
| Material body grip | TPU fire-retardant, self-extinguishing |
| Material knurled | Die-cast zinc, nickel plated |
| Material of the board | NBR |
Cable
| Outer wrap, color | black RAL 9005 |
|---|---|
| Outer casing, material | PUR |
Standards and specifications
| Class of flammability according to UL 94 | HB |
|---|
Ratings
eCl@ss
| eCl@ss 4.0 | Twenty seven million sixty thousand three hundred six |
|---|---|
| eCl@ss 4.1 | Twenty seven million sixty thousand three hundred six |
| eCl@ss 5.0 | Twenty seven million sixty one thousand eight hundred one |
| eCl@ss 5.1 | Twenty seven million sixty one thousand eight hundred |
| eCl@ss 6.0 | Twenty seven million two hundred seventy nine thousand two hundred |
| eCl@ss 7.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| eCl@ss 8.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| eCl@ss 9.0 | Twenty seven million sixty thousand three hundred eleven |
ETIM
| ETIM 2.0 | EC000830 |
|---|---|
| ETIM 3.0 | EC001855 |
| ETIM 4.0 | EC001855 |
| ETIM 5.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
UNSPSC
| UNSPSC 6.01 | Thirty one million two hundred fifty one thousand five hundred one |
|---|---|
| UNSPSC 7.0901 | Thirty one million two hundred fifty one thousand five hundred one |
| UNSPSC 11 | Thirty one million two hundred fifty one thousand five hundred one |
| UNSPSC 12.01 | Thirty one million two hundred fifty one thousand five hundred one |
| UNSPSC 13.2 | Thirty one million two hundred fifty one thousand five hundred one |
