PHOENIX CONTACT SAC-4P-10,0-PUR/AD SO SAC-4P-10,0-PUR/AD SO 1404322 PHOENIX CONTACT Sensor/actuator cable, 4-pos., PUR halogen-free, RAL 7021 blac.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-4P-10,0-PUR/AD SO 1404322 PHOENIX CONTACT Sensor/actuator cable, 4-pos., PUR halogen-free, RAL 7021 blac..

SAC-4P-10,0-PUR/AD SO

1404322

PHOENIX CONTACT

50 Pcs.

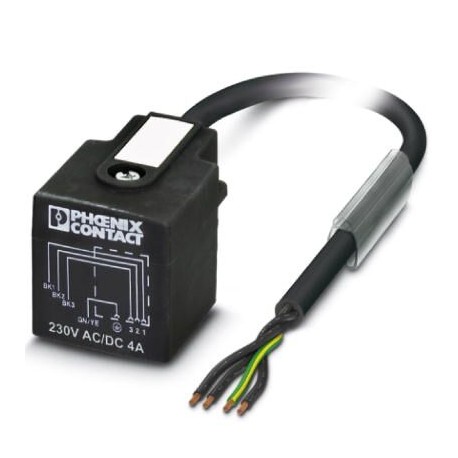

Sensor/actuator cable, 4-pos., PUR halogen-free, RAL 7021 black-gray, free cable end, to AD valve connector (pressure switch), cable length: 10 m, with knurled screw Sensor/actuator cable, 4 poles, halogen-free PUR, greyish black RAL 7021, free cable end, in AD valve connector (pressure switch), cable length: 10 m, with knurled screw

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1404322
Packing unit1
GTIN4046356691048
Custom tariff number85444290

Drawings

Dimensional drawing

Dimensional drawing
Valve connector, type AD

Dimensional drawing

Dimensional drawing
Valve connector, type AD, side view

Circuit diagram

Circuit diagram
Contact assignment of the valve plug

Schematic diagram

Schematic diagram
Valve plug connector pin assignment, type AD

Cable cross section

Cable cross section
PUR halogen-free black [PUR]

Back to top

Dimensions

Length of cable10 m
Back to top

Ambient conditions

Degree of protectionIP65
IP67
Back to top

General

Rated current at 40°C4 A
Rated voltage230 V AC
230 V DC
Number of positions4
Insulation resistance≥ 100 MΩ
Standards/regulationsValve connector EN 175301-803
Overvoltage categoryIII
Degree of pollution3
Torque0.6 Nm
Back to top

Material

Flammability rating according to UL 94V0
Valve plug contact materialCuSn
Valve plug contact surface materialSn
Valve plug contact insert materialPA 6
Material housing valve plugTPU
Back to top

Standards and Regulations

Standards/specificationsValve connector EN 175301-803
Flammability rating according to UL 94V0
Back to top

Cable

Cable typePUR halogen-free black
Cable type (abbreviation)PUR
Cable abbreviationLi9Y11Y
UL AWM style20549
Conductor cross section4x 0.5 mm²
AWG signal line20
Conductor structure signal line28x 0.15 mm
Core diameter including insulation1.5 mm ±0.05 mm (Signal line)
Wire colorsBlack 1, black 2, black 3, green/yellow
Overall twist4 wires, twisted
External sheath, colorblack-gray RAL 7021
External cable diameter D4.9 mm ±0.2 mm
Smallest bending radius, fixed installation25 mm
Smallest bending radius, movable installation50 mm
Number of bending cycles15000000
Bending radius50 mm
Traversing path0.9 m
Traversing rate5 m/s
Acceleration30 m/s²
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistancemin. 20 MΩ*km
Conductor resistance39 Ω/km (at 20 °C)
Nominal voltage, cable300 V
Test voltage, cable1200 V
Flame resistanceaccording to DIN VDE 0482
According to DIN EN 50265-2-1
Other resistancelargely oil-resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)
Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 4.027060300
eCl@ss 4.127060300
eCl@ss 5.027061800
eCl@ss 5.127061800
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311
Back to top

ETIM

ETIM 3.0EC001855
ETIM 4.0EC001855
ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855
Back to top

UNSPSC

UNSPSC 6.0131251501
UNSPSC 7.090131251501
UNSPSC 1131251501
UNSPSC 12.0131251501
UNSPSC 13.231251501
UNSPSC 19.031251501
UNSPSC 20.031251501
UNSPSC 21.031251501
Back to top

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
