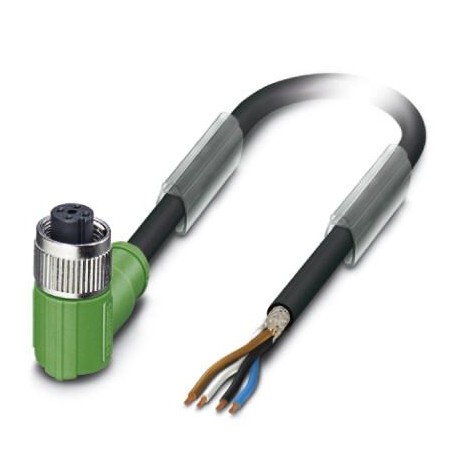

Sensor/actuator cable - SAC-4P-10-PVC/M12FR SH OBS VA - 1403413 Sensor/actuator cable, 4-pole, PVC, black RAL 9005, shielded, free cable end, to Elbowed female M12, coding: A, cable length: 10 m, Customer variant

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Sensor/actuator cable, 4-position, PVC, black RAL 9005, shielded, cable length: 10 m, Customer version

Key Commercial Data

Orderkey1403413
Packing unit1
GTIN4046356651646
Custom tariff number85444290

Dimensions

Length of cable10 m
Stripping length of the free conductor end50 mm

General

Rated current at 40°C4 A
Rated voltage48 V AC
60 V DC
Number of positions4
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryII
Degree of pollution3

Material

Flammability rating according to UL 94HB
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsStainless steel
Sealing materialNBR

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94HB

Cable

Cable typePVC black
Cable type (abbreviation)PVC
Conductor cross section4x 0.34 mm² (Signal line)
AWG signal line22
Conductor structure signal line42x 0.10 mm
Core diameter including insulation1.4 mm ±0.02 mm
Thickness, insulation≥ 0.23 mm (Core insulation)
≥ 0.76 mm (Outer cable sheath)
Wire colorsbrown, white, blue, black
Overall twist4 wires, twisted
ShieldingTinned copper braided shield
Optical shield covering85 %
External sheath, colorblack RAL 9005
External cable diameter D5.9 mm ±0.2 mm
Cable weight52 kg/km
Outer sheath, materialPVC
Material conductor insulationPVC
Conductor materialBare Cu litz wires
Insulation resistance≥ 100 MΩ*km (at 20 °C)
Conductor resistancemax. 58 Ω/km (at 20 °C)
Nominal voltage, cable≤ 300 V
Test voltage, cable≥ 3000 V
Special propertiesFree of substances which would hinder coating with paint or varnish
Silicone-free
Flame resistanceAs per UL-Style 2464
Ambient temperature (operation)-25 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 4.027060306
eCl@ss 4.127060306
eCl@ss 5.027060300
eCl@ss 5.127061800
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311

ETIM

ETIM 4.0EC001855
ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855

UNSPSC

UNSPSC 6.0131251501
UNSPSC 7.090131251501
UNSPSC 1131251501
UNSPSC 12.0131251501
UNSPSC 13.231251501

ETIM for 1403413 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) Other
Positioning cable feed, field-sided (EF005928) Other
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Angled
Cable length (EF000536) 10 m
