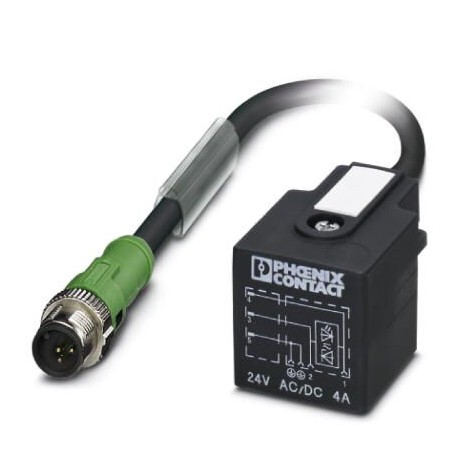

PHOENIX CONTACT SAC-3P-MS/0,9-240/A SCO J-YM SAC-3P-MS/0,9-240/A SCO J-YM 1410061 PHOENIX CONTACT Sensor/actuator cable SAC-3P-MS/0,9-240/A SCO J-YM 1410.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-3P-MS/0,9-240/A SCO J-YM 1410061 PHOENIX CONTACT Sensor/actuator cable SAC-3P-MS/0,9-240/A SCO J-YM 1410..

SAC-3P-MS/0,9-240/A SCO J-YM

1410061

PHOENIX CONTACT

50 Pcs.

Sensor/actuator cable - SAC-3P-MS/0,9-240/A SCO J-YM - 1410061 Sensor/actuator cable, 3-pole halogen-free, M12 straight connector, coding: A SPEEDCON, a Valve connectors A, cable length: 0.9 m, Customer variant

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Sensor/actuator cable, 3-position, PUR halogen-free, yellow, Plug straight M12 SPEEDCON, A-coded, on Valve connector A, cable length: 0.9 m, Customer version

Key Commercial Data

Orderkey1410061
Packing unit1
GTIN4046356888691
Custom tariff number85444290

Dimensions

Length of cable0.9 m

Ambient conditions

Degree of protectionIP65
IP67

General

Rated current at 40°C4 A
Rated voltage48 V AC
60 V DC
Number of positions3
Insulation resistance≥ 100 MΩ
CodingA - standard
Overvoltage categoryIII
Degree of pollution3

Material

Flammability rating according to UL 94HB
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU
Valve plug contact materialCuSn
Valve plug contact surface materialSn
Valve plug contact insert materialPA 6.6
Material housing valve plugTPU
Material, knurlsZinc die-cast, nickel-plated
Sealing materialTPU (Seal molded)

Standards and Regulations

Flammability rating according to UL 94HB

Cable

Cable typePUR halogen-free yellow
Cable type (abbreviation)240
Cable abbreviationLi9Y11Y
UL AWM style20549 (80°C/300 V)
Conductor cross section3x 0.5 mm²
AWG signal line20
Conductor structure signal line28x 0.15 mm
Core diameter including insulation1.46 mm ±0.02 mm
Thickness, insulation≥ 0.21 mm
Wire colorsblack 1, black 2, green/yellow
Overall twist3 wires, twisted
External sheath, coloryellow
Outer sheath thicknessapprox. 0.6 mm
External cable diameter D4.5 mm ±0.15 mm
Cable weight30 kg/km
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance≥ 10 GΩ*km
Conductor resistance≤ 39 Ω/km
Nominal voltage, cable≤ 300 V
Test voltage, cable≥ 3000 V
Flame resistancein accordance with DIN UL-Style 20549
Halogen-freein accordance with DIN VDE 0472 part 815
Ambient temperature (operation)-15 °C ... 80 °C (cable, fixed installation)

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 4.027060306
eCl@ss 4.127060306
eCl@ss 5.027061801
eCl@ss 5.127061800
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311

ETIM

ETIM 4.0EC001855
ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855

UNSPSC

UNSPSC 6.0131251501
UNSPSC 7.090131251501
UNSPSC 1131251501
UNSPSC 12.0131251501
UNSPSC 13.231251501

ETIM for 1410061 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 3
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 0.9 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Yellow
With LED indication (EF005950) No
Screened (EF000881) No
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -15 °C
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65
