View larger
Images are for illustrative purposes only. Please refer to data sheet for details

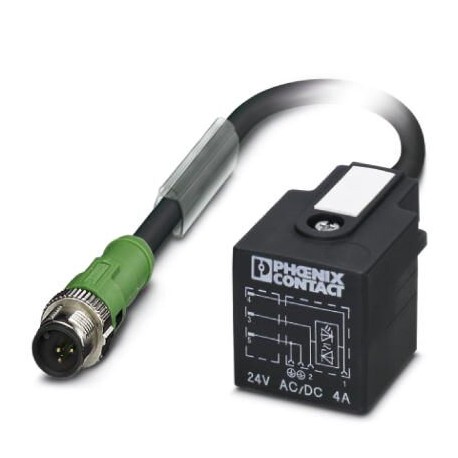

SAC-3P-MS/ 0,6-116/A-1L-Z SCO 1453410 PHOENIX CONTACT Cable for sensors/actuators, 3-poles, PUR/PVC, black R..
SAC-3P-MS/ 0,6-116/A-1L-Z SCO
1453410
PHOENIX CONTACT
1 Pcs.
Cable for sensors/actuators, 3-poles, PUR/PVC, black RAL 9005, Plug straight M12 SPEEDCON, coded, to valve Connector A, with 1 LED, connected with Z Diode, cable length: 0.6 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Cable for sensors/actuators, 3-poles, PUR/PVC, black RAL 9005, Plug straight M12 SPEEDCON, coded, to valve Connector A, with 1 LED, connected with Z Diode, cable length: 0.6 m
Data commercial
| Key order | One million four hundred fifty three thousand four hundred ten |
|---|---|
| Packing unit | 1 pcs |
| Key selling | BF1DJA - |
| EAN | Four trillion forty six billion three hundred fifty six million five hundred fifty two thousand nine hundred twelve |
| Unit weight (excluding packaging) | 67,000 g |
| Tariff number tariff | Eighty five million four hundred forty four thousand two hundred ninety |
| Country of origin | PL (Poland) |
Measures
| Cable length | 0.6 m |
|---|
Environmental conditions
| Room temperature (service) | -25 °C ... 90 °C (male / female) |
|---|---|
| -20 °C ... 85 °C (valve connector) | |
| Index of protection | IP65 |
| IP67 |
Overview
| Current sizing at 40 °C | 4 To |
|---|---|
| Tension sizing | 24 V AC |
| 24 V DC | |
| Number of poles | Three |
| Insulation resistance | ≥ 100 MΩ |
| Encoding | A - standard |
| Standards/specifications | Plug-in connector M12 to IEC 61076-2-101 |
| Valve connector IN 175301-803 | |
| Status indication | 1 LED |
| Protective circuit/component protection | Diode Z |
| Category surge | III |
| Pollution degree | Three |
| Cycles of plug | ≥ 100 (M12 Connector) |
| Tightening torque | 0.4 Nm (M12 Connector) |
| 0.6 Nm (valve Connector) |
Material
| Class of flammability according to UL 94 | HB |
|---|---|
| Material contact | CuSn |
| Material contact surface | Ni/Au |
| Material support of contacts | TPU GF |
| Material body grip | TPU |
| Material contact valve connector | CuSn |
| Material contact surface valve connector | Sn |
| Material insert with contacts connector valve | PA 6.6 |
| Material housing valve connector | TPU |
| Material knurled | Die-cast zinc, nickel plated |
| Material of the board | TPU (Seal extruded) |
Standards and specifications
| Name of standard | Plug-in connector M12 |
|---|---|
| Standards/specifications | IEC 61076-2-101 |
| Name of standard | Valve connector |
| Standards/specifications | IN 175301-803 |
| Class of flammability according to UL 94 | HB |
Cable
| Type of cable | PUR/PVC, 0.75 mm2, black |
|---|---|
| Cable type (abbreviation) | One hundred sixteen |
| Abbreviation of cable | LiYY11Y |
| UL AWM Style | Twenty thousand five hundred forty nine |
| Section of driver | 3x 0.75 mm2 |
| Signal cable AWG | Eighteen |
| Construction of the driver signal cable | 24x 0.20 mm |
| Diameter of the conductors, insulation included | 1.7 mm ±0.05 mm |
| Colors driver | black 1, black 2, green/yellow |
| Cabling total | 3-conductor longitudinally twisted |
| Outer wrap, color | black RAL 9005 |
| Outer diameter of cable D | 5.8 mm ±0.2 mm |
| Minimum bending radius, placed in a flexible way | 10 x D |
| Number of bending cycles | One million |
| Forward speed | 2 m/s |
| Acceleration | 2.5 m/s2 |
| Outer casing, material | PUR |
| Material Wrap interior | PVC |
| Material Insulation conductor | PVC |
| Conductive Material | Conductor Cu bare |
| Insulation resistance | ≥ 20 MΩ*km |
| Resistance of the conductor | 26 Ω/km (at 20 °C) |
| Rated voltage Cable | 300 V |
| Test voltage Cable | 1200 V |
| Special features | flexible |
| Flame resistance | TO DIN VDE 0482 |
| DIN EN 50265-2-1 | |
| according to UL FT-2 | |
| Other resistors | little adherent |
| Room temperature (service) | -40 °C ... 80 °C (cable, fixed) |
| -5 °C ... 80 °C (cable, available mobile) |
Environmental Product Compliance
| China RoHS | Space of time for the intended use (FEUP): 50 years |
|---|---|
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss
| eCl@ss 4.0 | Twenty seven million sixty thousand three hundred six |
|---|---|
| eCl@ss 4.1 | Twenty seven million sixty thousand three hundred six |
| eCl@ss 5.0 | Twenty seven million sixty one thousand eight hundred one |
| eCl@ss 5.1 | Twenty seven million sixty one thousand eight hundred |
| eCl@ss 6.0 | Twenty seven million two hundred seventy nine thousand two hundred |
| eCl@ss 7.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| eCl@ss 8.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| eCl@ss 9.0 | Twenty seven million sixty thousand three hundred eleven |
ETIM
| ETIM 3.0 | EC001855 |
|---|---|
| ETIM 4.0 | EC001855 |
| ETIM 5.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
UNSPSC
| UNSPSC 6.01 | Thirty one million two hundred fifty one thousand five hundred one |
|---|---|
| UNSPSC 7.0901 | Thirty one million two hundred fifty one thousand five hundred one |
| UNSPSC 11 | Thirty one million two hundred fifty one thousand five hundred one |
| UNSPSC 12.01 | Thirty one million two hundred fifty one thousand five hundred one |
| UNSPSC 13.2 | Thirty one million two hundred fifty one thousand five hundred one |
